EBM-PAPST

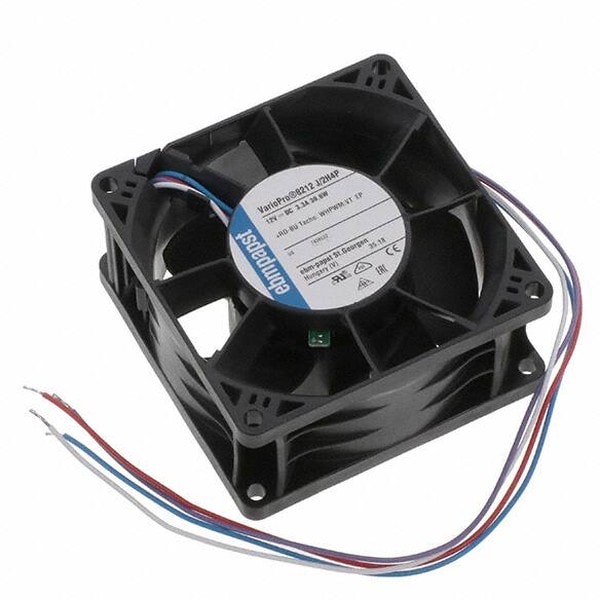

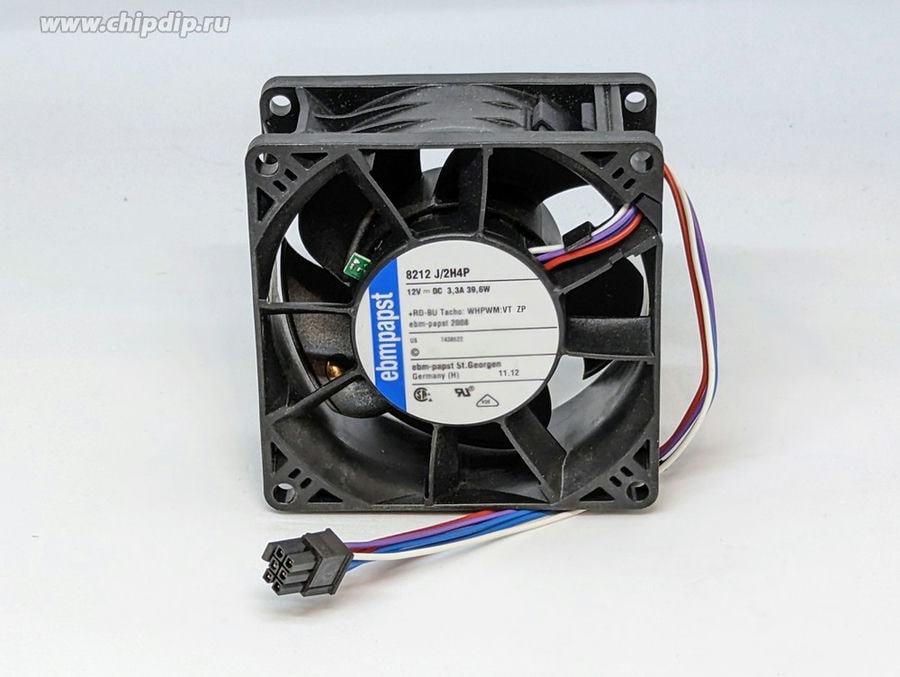

8035598711 Вентилятор Ebmpapst 8212 J/2H4P 12v 3.3A 39.6W 80×38 6pin () Hirschmann
5820,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 80mm L x 80mm H Ball 130.7 CFM (3.66mВі/min) 3 Wire Leads
| Вес, г | 200 |
| Air Flow | 222.7m³/h |
| Fan Type | Tubeaxial |
| Series | 8200J, S-Force-> |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| Питание | 6pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| Features | Speed Sensor(Tach) |
| Noise | 71.0dB(A) |
| Lifetime @ Temp. | 50000 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 3 Wire Leads |
| Width | 38.00mm |
| AC or DC Operation | DC |
| Sensor Type | PWM, Tachometer |
| Voltage Range | 6 ~ 13.8VDC |
Детали
| Бренд | EBM-PAPST |
|---|
