Delta Electonics

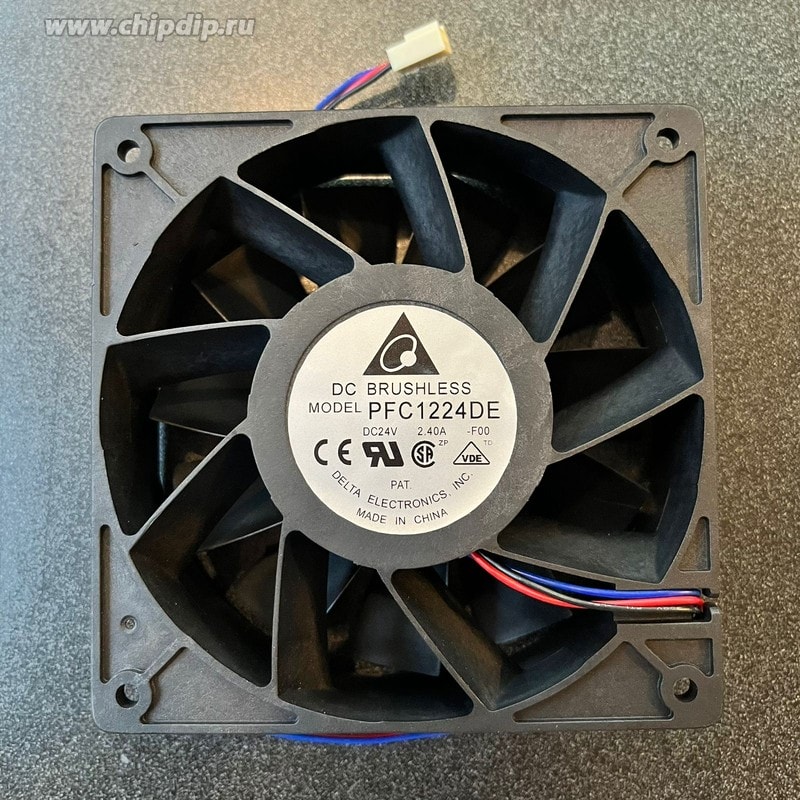

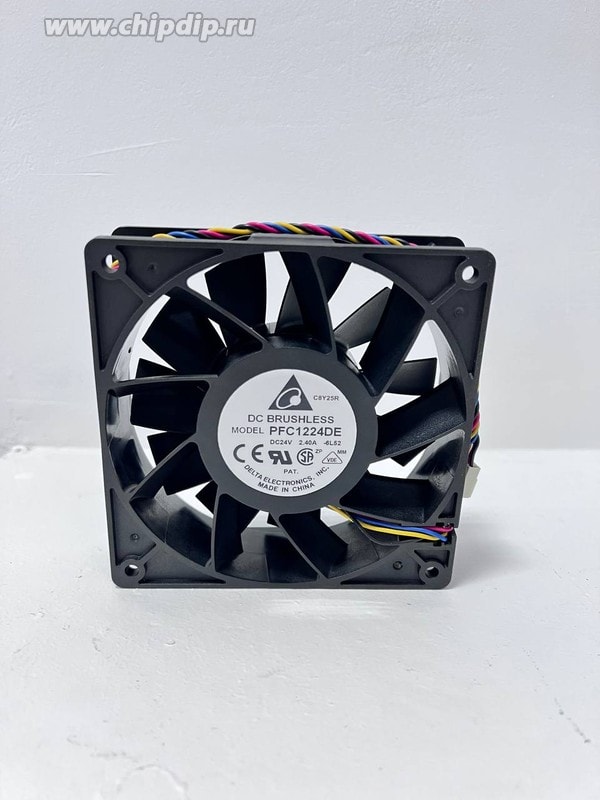

8035599007 Вентялятор DC brushless Model PFC1224DE 24V 2.40A 120×38 3pin Hirschmann
3110,00 ₽
Описание
Product Attributes.
- Series
PFC - Part Status
Enabled - Voltage Rated
24 VDC - Size / Dimension
Round-120mm Diameter - Width
38.00mm - Air Flow
252.85CFM (7.160 m3/min) - Static Pressure
1.412inchH2O (35.877mmH2O) - Bearing Type
Ball - Fan Type
Axial - Features
PWM Control, Speed Sensor (Tach) - Noise
66.5 dB(A)
- Power (Watts)
48.00 W - RPM
5500 RPM - Termination
4 Lead Wires - Ingress Protection
— - Operating Temperature
-10~+60⁰C - Weight gram (g)
380g - Current Rating
2.00 A - Voltage Rating
14.0-26.5VDC - Material Frame
Plastic - Material Blade
Plastic - Lifetime @ Temp
70000 Hrs@40°C
| Вес, г | 380 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 3pin |
| Ток,А | 2.4 |
| Шум, дБA | 66.5 |
Детали
| Бренд | Delta Electonics |
|---|
