EBM-PAPST

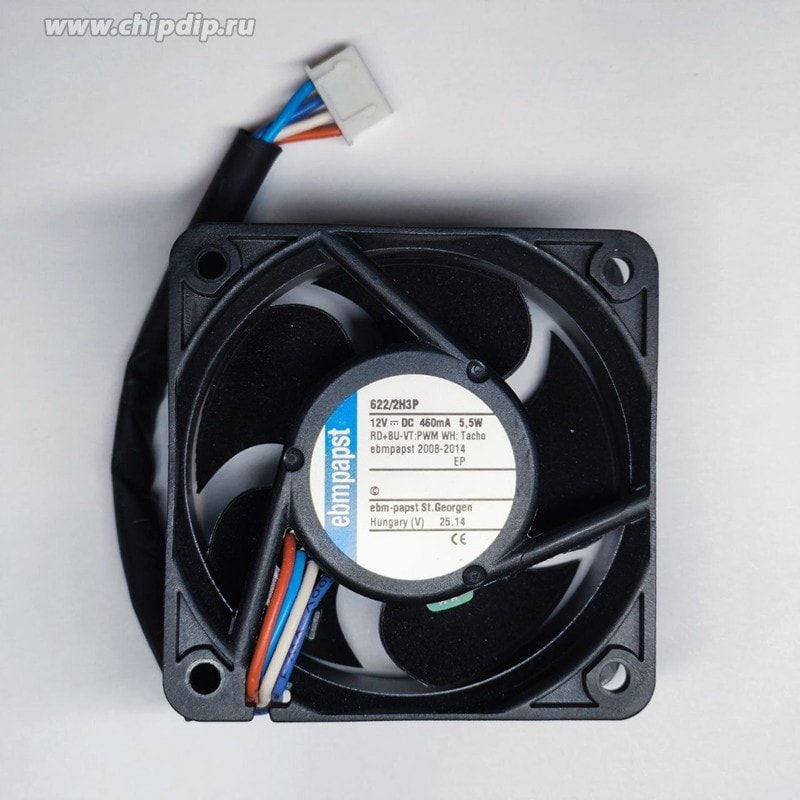

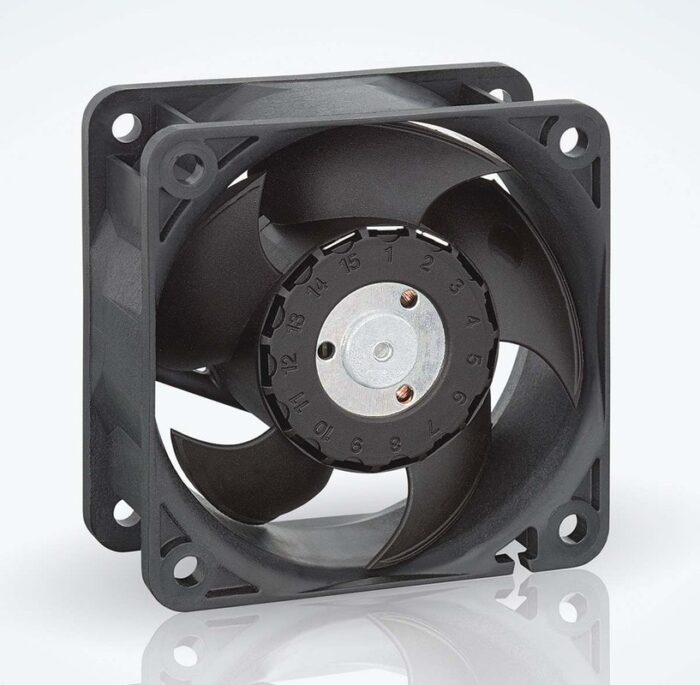

8041356293 Вентилятор Ebmpapst 622/2H3P 12V DC 460mA 5.5W 60X25 4pin () Hirschmann
9860,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 39.5 CFM (1.11mВі/min)
| Вес, г | 85 |
| Air Flow | 67m³/h |
| Fan Type | Tubeaxial |
| Noise Level | 48dB |
| Series | 620-> |
| Supply Voltage | 12 V dc |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 25.4 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| Features | Speed Sensor(Tach) |
| IP Rating | IP20 |
| Noise | 48.0dB(A) |
| Approval Agency | CSA, UL, VDE |
| Lifetime @ Temp. | 52500 Hrs @ 40В°C |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | -4 ~ 140В°F(-20 ~ 60В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Weight | 0.19 lb(86.18 g) |
| Width | 25.40mm |
| Power consumption | 5.5W |
| Bearing Type | Ball |
| AC or DC Operation | DC |
| Fan Speed | 9700rpm |
| Sensor Type | Tachometer |
| Termination Type | Lead Wire |
| Voltage Range | 8 ~ 13.2VDC |
Детали
| Бренд | EBM-PAPST |
|---|
