EBM-PAPST

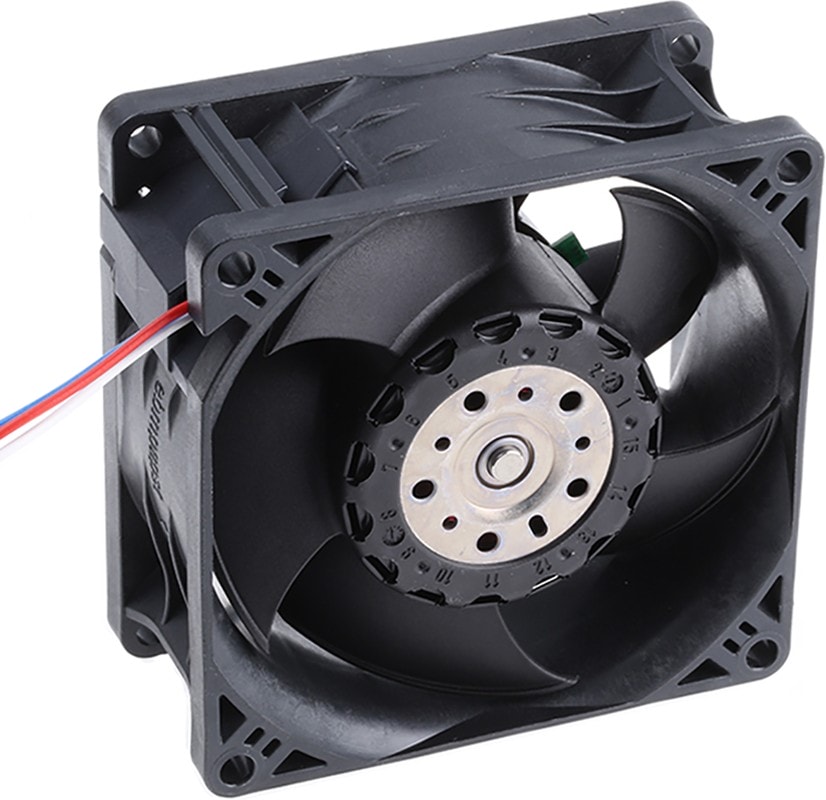

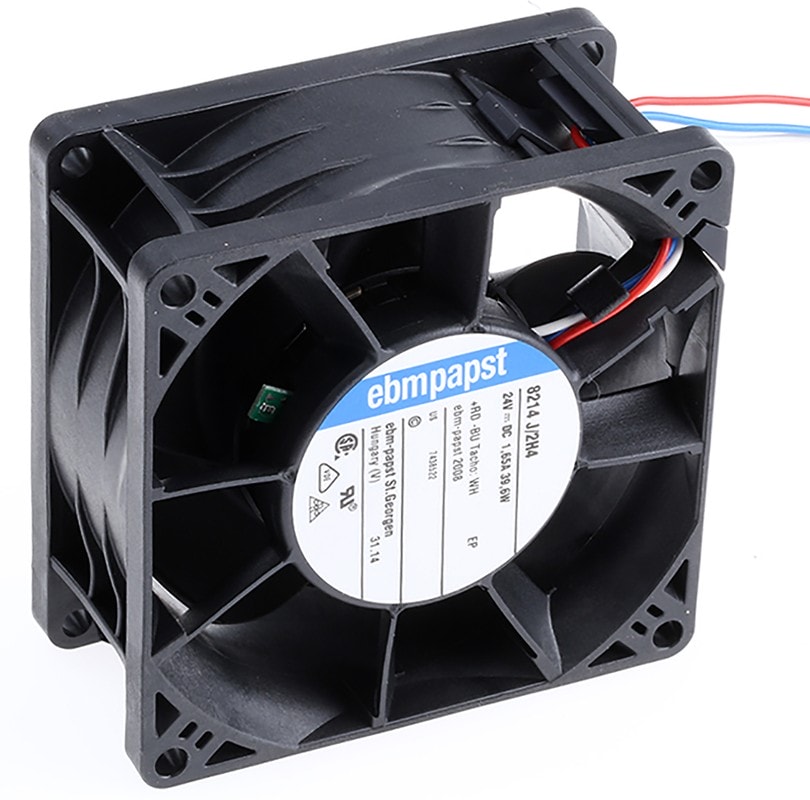

8045494894 Вентилятор Ebmpapst 8214J/2H4 24V 39.6W 1650mA 80×38 3pin Hirschmann
3480,00 ₽
Описание
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications.
| Вес, г | 210 |
| Air Flow | 222m³/h |
| Noise Level | 71dB |
| Special Features | Tachometer Output |
| Supply Voltage | 24 V dc |
| ECCN | EAR99 |
| Power Rating | 38 W |
| Operating Temperature | -20 to 70 °C |
| Termination | Lead Wires |
| Width | 80mm |
| Category | DC Fan |
| Housing Material | Plastic |
| Maximum Airflow | 131 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Power consumption | 38W |
| Bearing Type | Ball |
| AC or DC Operation | DC |
| Fan Speed | 14000rpm |
| Sensor Type | Tachometer |
| Tachometer Signal | Yes |
Детали
| Бренд | EBM-PAPST |
|---|
