Sanyo Denki

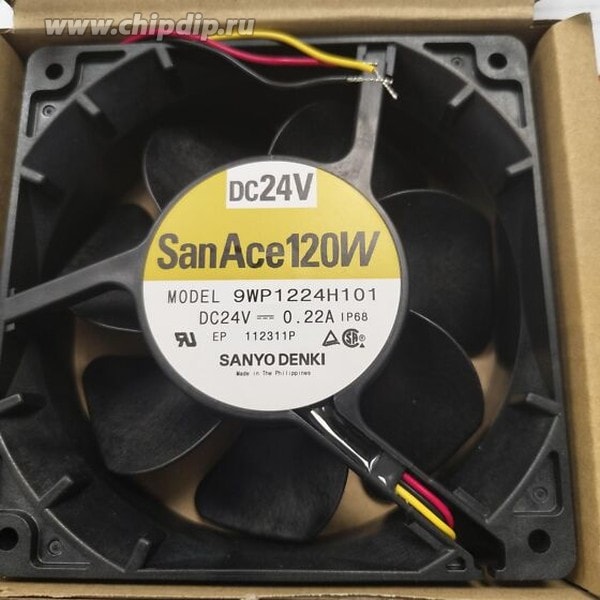

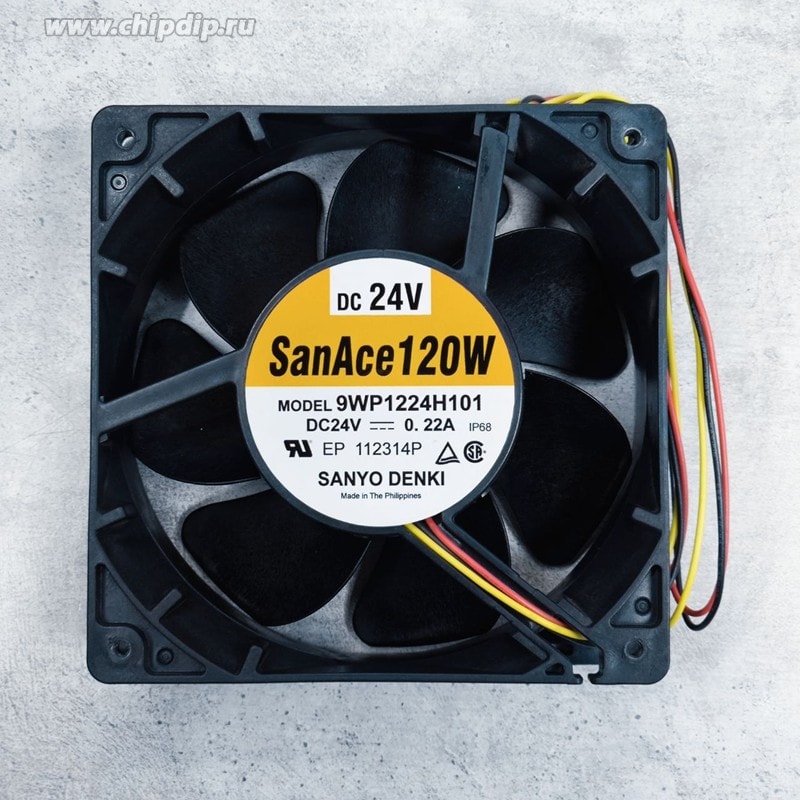

8049470719 Вентилятор Sanyo Denki San Ace 120 9WP1224H101 24V DC 0.22A 120X38 3pin Hirschmann
6080,00 ₽
Описание
Keep your machinery cool and prevent overheating with this axial fan from Sanyo Denki. Thanks to its high speed of 2600rpm, this device delivers a powerful airflow of 168m³/h for the effective cooling of your machine parts.
| Вес, г | 300 |
| Air Flow | 168.2m³/h |
| Fan Type | Tubeaxial |
| Noise Level | 39dB(A) |
| Supply Voltage | 24 V dc |
| Features | Speed Sensor(Tach) |
| IP Rating | IP68 |
| Noise | 39.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 3 Wire Leads |
| Width | 120mm |
| Power consumption | 5.28W |
| Rated voltage | 24V |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.283 in H2O(70.5 Pa) |
| Bearing Type | Ball |
| Rated Speed | 2600RPM |
| Power (Watts) | 5.28 W |
| RPM | 2600 RPM |
| Voltage — Rated | 24VDC |
| AC or DC Operation | DC |
| Maximum Current | 220mA |
| Fan Speed | 2600rpm |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Size | 120mm×120mm×38mm |
| Air volume | 99CFM |
| Rated current | 0.22A |
| Rated power | 5.28W |
Детали
| Бренд | Sanyo Denki |
|---|
