EBM-PAPST

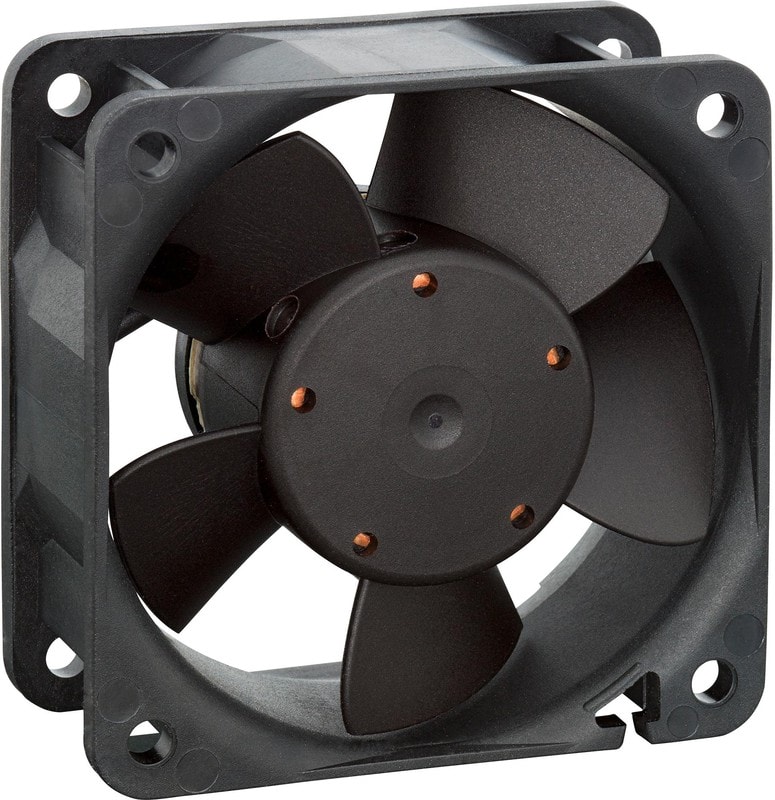

8574732396 614NGHH-F00, DC Axial Fan, 24 V, Square, 60 mm, 25 mm, Sleeve Bearing, 33 CFM Hirschmann
12250,00 ₽
Описание
ebm-papst make the mounting and installing of their fans even easier with Plug n’ Play versions. They come pre-fitted with a Molex connector and threaded brass inserts in order to save time and effort while installing. Ideal for applications where strong, durable metal threads are a prerequisite in a plastic housing, especially useful where frequent assembly and disassembly is necessary.
• Quick and easy installation
• 2 way connector fitted
• Molex KK interconnect system
• M3 thread brass inserts
• Inserts fitted on both sides
| Вес, г | 66 |
| Supply Voltage | 24VDC |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| IP Rating | IP54, IP68 |
| Bearing Type | Sleeve Bearing |
| Air Flow — CFM | 33CFM |
| Air Flow — m3/min | 0.934m³/min |
| External Depth | 25mm |
| Fan Frame Size | 60mm |
| Fan Frame Type | Square |
| Noise Rating | 43dBA |
| Power Connection Type | 2 Lead Wires with Connector |
| Product Range | 600NG |
| Rated Speed | 6850rpm |
| Flow Rate — Imperial | 33CFM |
| Flow Rate — Metric | 56m³/h |
| Voltage Type | DC |
| Производительность,м.куб./мин. | 33 |
| Supply Voltage VDC | 24V |
Детали
| Бренд | EBM-PAPST |
|---|
