Orion Fans

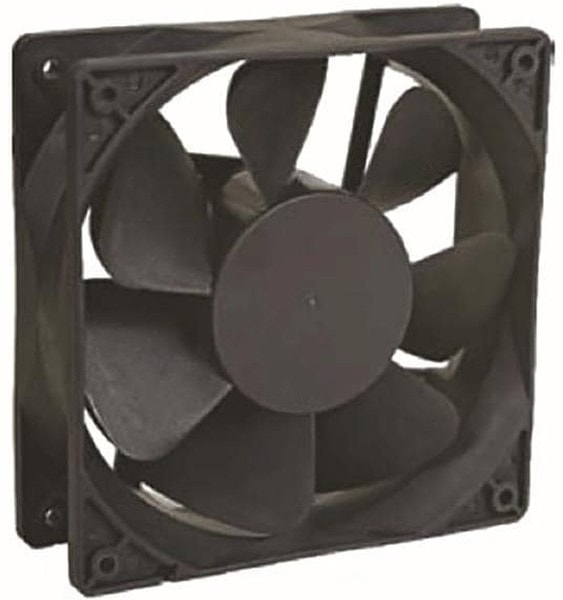

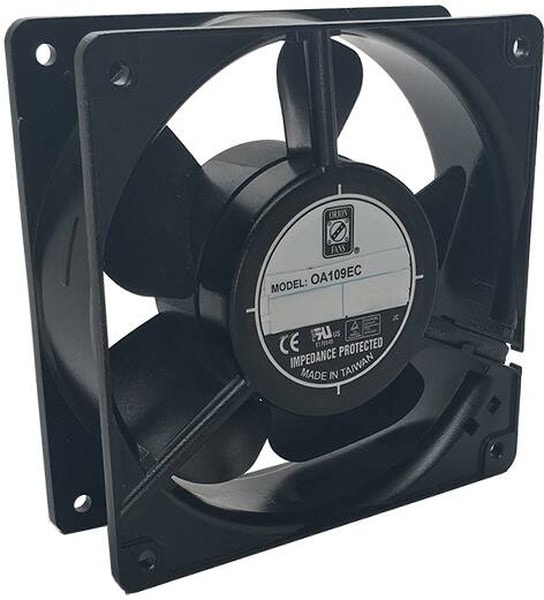

8004715773 OA109EC-UR-1WBIP68A, EC Fans EC Axial Fan, 120x120x38mm, 115-230VAC, 106CFM, 0.34″H2O, Universal Range, IP68 Hirschmann
13530,00 ₽
Описание
OA_EC Electronically Commutated Fans
Orion Fans OA_EC Electronically Commutated (EC) Fans feature a 90V AC to 265V AC voltage range and a 3000 to 3950RPM rated speed, depending on the model. EC Fans create a low power, energy-saving cooling solution for AC applications and have a 31 to 57dB range. Orion Fans OA_EC EC Fans have either a plastic or aluminum frame construction and a -20° to +70°C operating temperature.
| Вес, г | 290 |
| Потребляемая мощность, Вт | 4.9 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | OA109EC-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 230 |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Packaging | Box |
| Product Category | AC Fan |
| Product Type | EC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Dual Voltage, Electronic Commutation(EC), Thermal |
| Airflow | 106 CFM(3 m3/min) |
| Current Type | EC |
| Depth | 38 mm |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP68 |
| Noise | 43 dBA |
| Operating Supply Voltage | 115 VAC to 230 VAC |
| Power Rating | 4.9 W, 5.2 W |
| Termination Style | Wire Leads |
| Type | Axial |
| Approval Agency | ATEX, CE, cURus, UR |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Weight | 0.64 lb(290.3 g) |
| Width | 38.00mm |
| COO | TW |
| Housing Material | Plastic |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| speed | 3200 RPM |
| Current Rating (Amps) | 0.060A/0.080A |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.34 in H2O(84.7 Pa) |
| Bearing Type | Ball |
| Pressure Type | 0.34 in H2O |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 106 |
| Шум, дБA | 43 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| Линейка продукции | OA109EC-IP68-ATEX Series |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.34inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Voltage Range | 90 ~ 265VAC |
| Класс Мощности | 5.2Вт |
| Номинальная скорость | 3200об/мин |
| Номинальное напряжение AC | 115В/230В |
| Поток воздуха — куб.фут/мин | 106фут³/мин |
| Размер Рамы Вентилятора | 120мм |
| Рейтинг Шума | 43дБА |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | 2-жильные провода |
| Ток | 80мА |
| Класс Защиты IP | IP68 |
| Поток воздуха — куб.м/мин | — |
| Size (Metric) (mm) | 120 X 120 X 38 |
| Voltage Rating (V) | 115|230 |
| Power Rating (W) | 4.9|5.2 |
| Nominal Speed (r/min) | 3200 |
| Maximum Airflow (CFM) | 106 |
| Noise Level (dB) | 43 |
| Bearings | Ball |
| Line Current (A) | 0.08|0.06 |
| Operating Input Voltage Range (V) | 90 to 265 |
Детали
| Бренд | Orion Fans |
|---|
