Qualtek Electronics

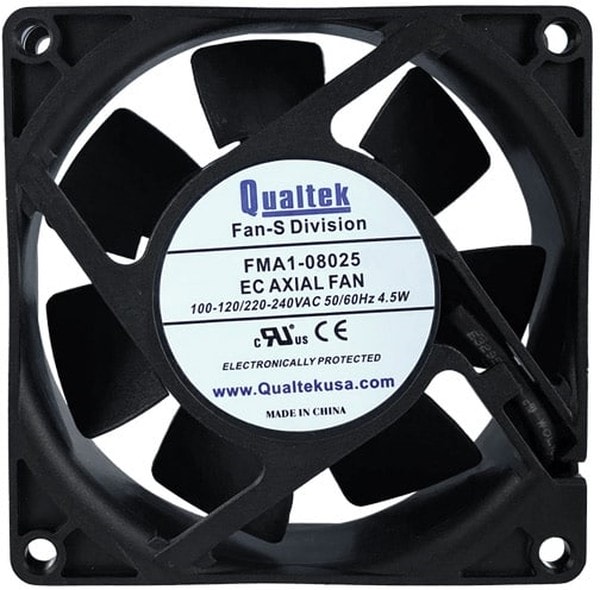

8004891077 FMA1-08025WBHT12, EC Fans EC FAN, 80x80x25mm, 2-BALL BEARING, HIGH SPEED, 100-240VAC, TERMINALS Hirschmann
5210,00 ₽
Описание
EC Fans
Qualtek EC Fans are AC fans that are powered by a DC motor. A power supply inside the fan converts the AC input to DC to power the fan. This allows for higher speeds versus AC fans and increased airflow as a similar-sized fan. These fans are more efficient than AC motor fans and are available with tachometer output, alarm output, and PWM control.
| Вес, г | 103 |
| Air Flow | 38.9 CFM(1.09m³/min) |
| Fan Type | Tubeaxial |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 240 |
| Brand | Qualtek |
| Manufacturer | Qualtek |
| Product Category | EC Fans |
| Product Type | EC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Electronic Commutation(EC) |
| Airflow | 41 CFM(1.16 m3/min) |
| Current Type | EC |
| Depth | 25 mm |
| Factory Pack Quantity: Factory Pack Quantity | 100 |
| IP Rating | IP54 |
| Noise | 31.0dB(A) |
| Operating Supply Voltage | 100 VAC to 240 VAC |
| Power Rating | 4.5 W |
| Approval Agency | CE, cURus |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 2 Terminals |
| Width | 25.00mm |
| Housing Material | Plastic |
| speed | 3500 RPM |
| Ingress Protection | IP54-Dust Protected, Water Resistant |
| Static Pressure | 0.247 in H2O(61.5 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 4.50W |
| RPM | 3500 RPM |
| Voltage — Rated | 100 ~ 240VAC |
Детали
| Бренд | Qualtek Electronics |
|---|
