EBM-PAPST

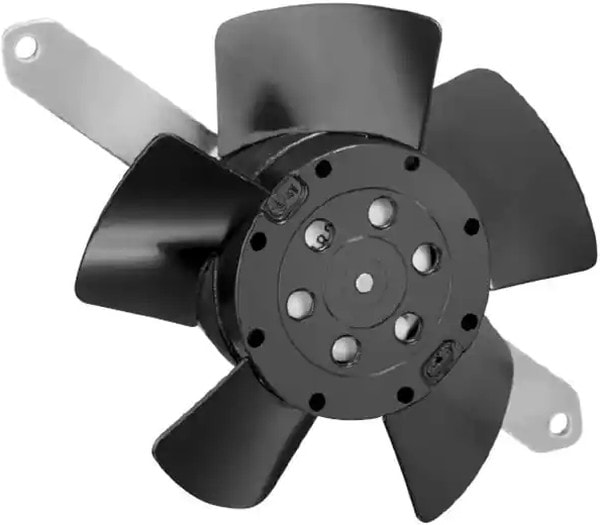

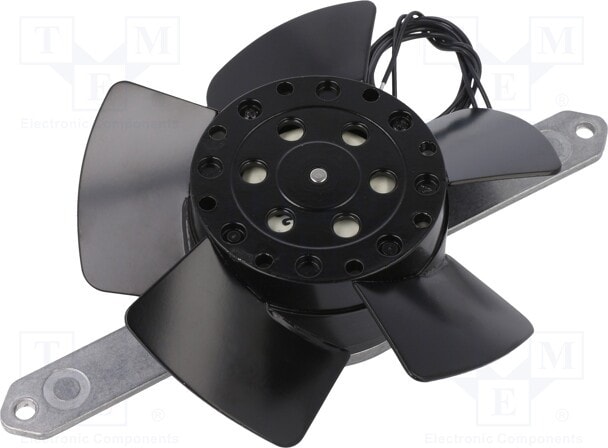

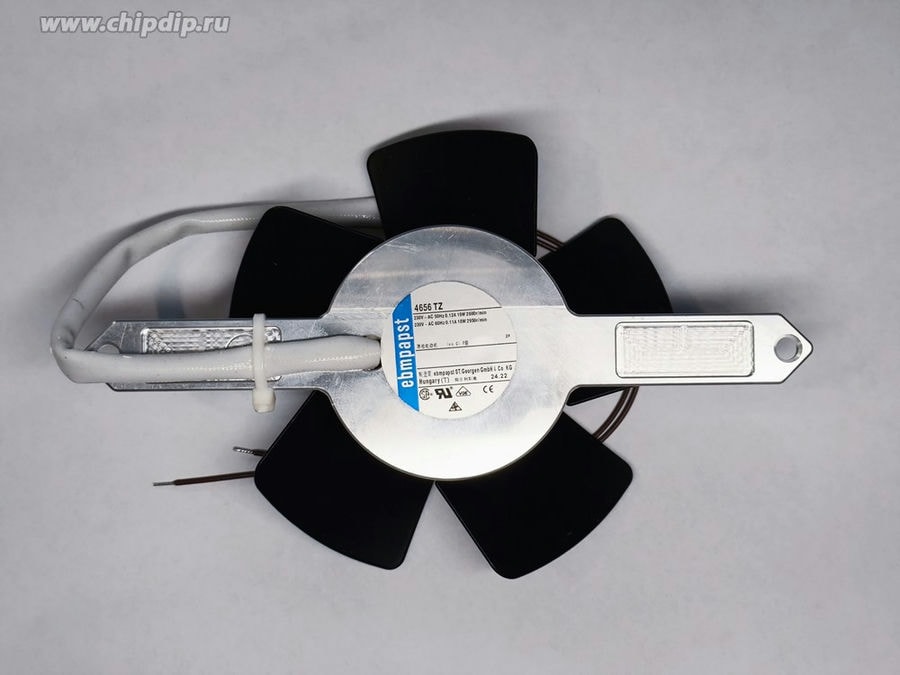

8004985336 4656TZ, AC Fans AC Tubeaxial Fan, 108x108x37mm, 230VAC, 82CFM, 19W, 42dBA, 2600RPM, Ball, IP20 Hirschmann
10370,00 ₽
Описание
Fan Tubeaxial 230VAC Round — 108mm Dia Ball 73.6 CFM (2.06mВі/min) 2 Wire Leads
| Вес, г | 392 |
| Потребляемая мощность, Вт | 19 |
| Fan Type | Tubeaxial |
| Noise Level | 42 dB |
| Series | 4600TZ-> |
| Special Features | External Temperature Sensor |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 37 |
| Brand | ebm-papst |
| Manufacturer | EBM-PAPST |
| Product Category | AC Fans |
| Product Type | AC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Current Type | AC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP20 |
| Power Rating | 19 W |
| Type | Tubeaxial |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 37500 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Metal |
| Operating Temperature | -40 ~ 149В°F(-40 ~ 65В°C) |
| Size / Dimension | Round-108mm Dia |
| Termination | 2 Wire Leads |
| Weight | 0.956 lb(433.63 g) |
| Width | 37.00mm |
| Enclosure material | metal |
| Fan efficiency | 124m3/h |
| Impeller material | metal |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | AC |
| Category | AC Fan |
| COO | CN |
| Housing Material | Metal |
| Maximum Airflow | 73.6 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Power consumption | 19 W |
| Rated voltage | 230 V |
| Sound pressure level | 42 db |
| speed | 2600 1/min |
| Type of bearing | ball bearing |
| Version | AC axial fan |
| Volume flow | 125 m³/h |
| Частота вращения,об./мин. | 2600 |
| Производительность,м.куб./мин. | 82 |
| Шум, дБA | 42 |
Детали
| Бренд | EBM-PAPST |
|---|
