Orion Fans

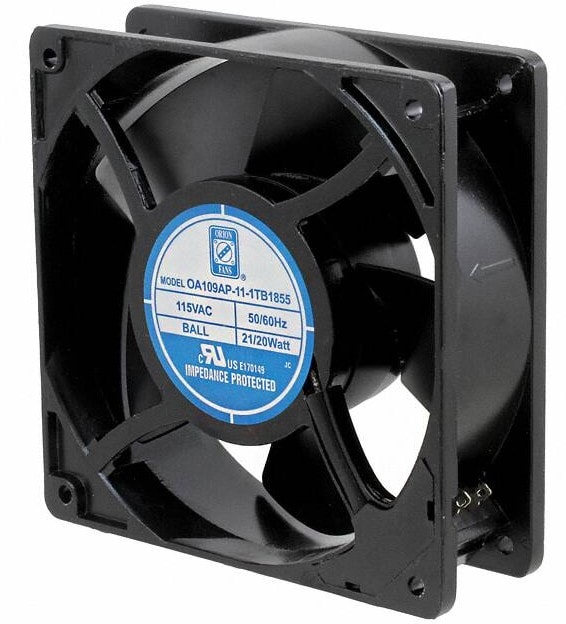

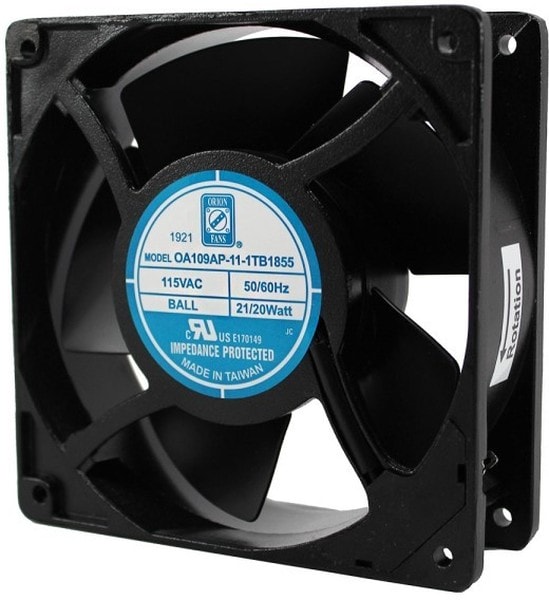

8005183792 OA109AP-11-1TB1855, AC Fans Axial Fan, 120x120x38mm, 115VAC, 105CFM, 20W, 48dBA, Ball, Terminal, IP55 Hirschmann
6850,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 119.5mm L x 119.5mm H Ball 105.0 CFM (2.94mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 10 |
| Fan Type | Tubeaxial |
| Noise Level | 48 dB |
| Series | OA109-> |
| Special Features | None |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 21 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Metal |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Square-119.5mm L x 119.5mm H |
| Termination | 2 Terminals |
| Weight | 1.3 lbs(589.7 g) |
| Width | 38.50mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 105 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.22 in H2O(54.8 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 105 |
| Шум, дБA | 48 |
| Video File | Harsh Environment Fans |
| Voltage Range | 100 ~ 120VAC |
Детали
| Бренд | Orion Fans |
|---|
