Orion Fans

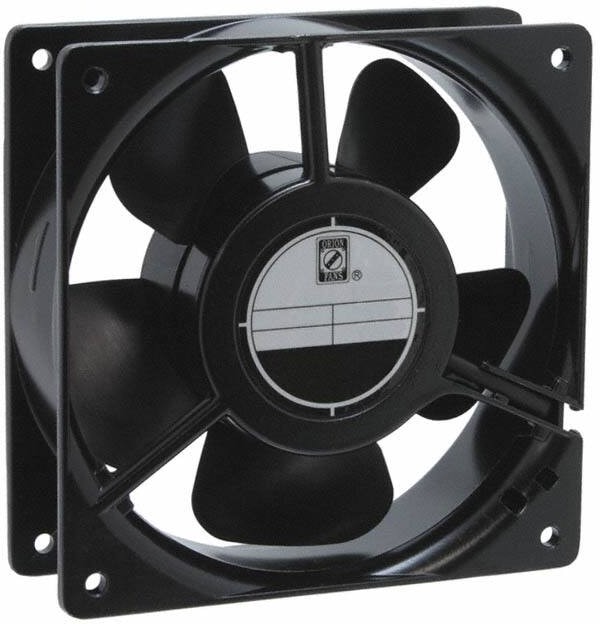

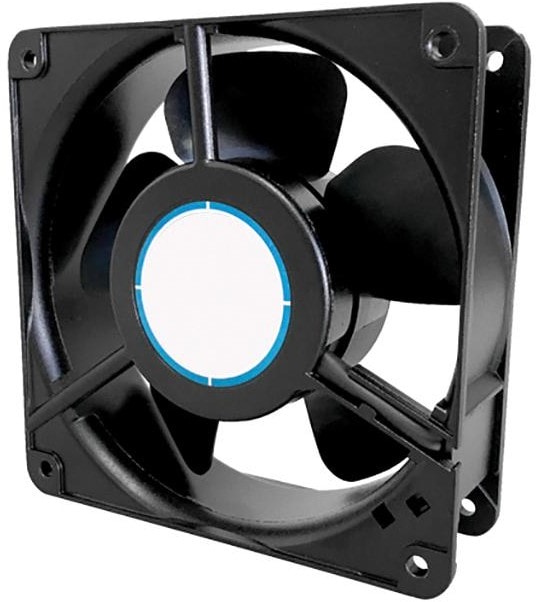

8005183808 OA109AP-22-1TBIP55, AC Fans Axial Fan, 120x120x38mm, 230VAC, 106CFM, 15W, 46dBA, Ball, Terminal, IP55 Hirschmann
4710,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 120mm L x 120mm H Ball 106.0 CFM (2.97mВі/min) 2 Terminals
| Вес, г | 508 |
| Потребляемая мощность, Вт | 15 |
| Air Flow | 106.0 CFM (2.97mВі/min) |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | OA109 -> |
| Special Features | High Speed |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 38 |
| Product Category | AC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| IP Rating | IP55 |
| Noise | 46.0dB |
| Power Rating | 15W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate (PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F (-20 ~ 70В°C) |
| Size / Dimension | Square — 120mm L x 120mm H |
| Termination | 2 Terminals |
| Weight | 1.1 lbs (499.0 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.080A |
| Ingress Protection | IP55 — Dust Protected, Water Resistant |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Bearing Type | Ball |
| Current Rating | 80mA |
| Air Flow — CFM | 106CFM |
| External Depth | 38mm |
| Fan Frame Size | 120mm |
| Fan Frame Type | Square |
| Noise Rating | 46dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | Terminals |
| Product Range | OA109AP-IP55 Series |
| Rated Speed | 3100rpm |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 106 |
| Шум, дБA | 46 |
| Power (Watts) | 15.00W |
| RPM | 3100 RPM |
| Voltage — Rated | 230VAC |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| Video File | Harsh Environment Fans |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.32inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | IP55 |
| Shape | Square |
| Size (Metric) (mm) | 120 X 120 X 38 |
| Voltage Rating (V) | 230 |
| Power Rating (W) | 12 |
| Nominal Speed (r/min) | 3100 |
| Maximum Airflow (CFM) | 106 |
| Noise Level (dB) | 46 |
| Bearings | Ball |
| Line Current (A) | 0.16 |
Детали
| Бренд | Orion Fans |
|---|
