Orion Fans

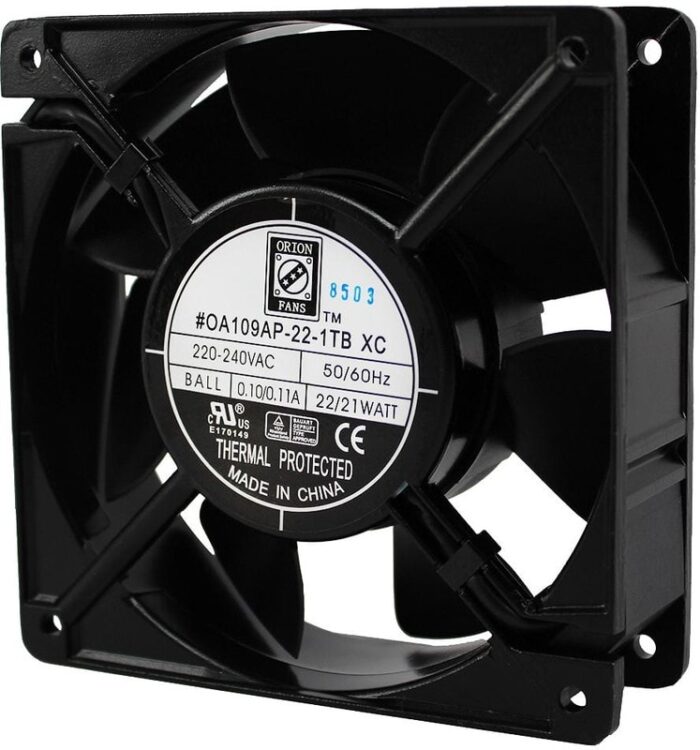

8005183810 OA109AP-22-1TBXC, AC Fans Axial Fan, 120x120x38mm, 230VAC, 131CFM, 22W, 47dBA, 3300RPM, Ball, Terminals Hirschmann
6090,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 120mm L x 120mm H Ball 131.0 CFM (3.67mВі/min) 2 Terminals
| Вес, г | 522 |
| Потребляемая мощность, Вт | 22 |
| Fan Type | Tubeaxial |
| Series | OA109XC-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 22W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 149В°F(-10 ~ 65В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Terminals |
| Width | 38.00mm |
| Current Rating (Amps) | 0.110A |
| Static Pressure | 0.49 in H2O(122.1 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 110mA |
| Air Flow — CFM | 131CFM |
| External Depth | 38mm |
| Fan Frame Size | 120mm |
| Fan Frame Type | Square |
| Noise Rating | 47dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | Terminals |
| Product Range | OA109 XC Series |
| Rated Speed | 3300rpm |
| Частота вращения,об./мин. | 3300 |
| Производительность,м.куб./мин. | 131 |
| Шум, дБA | 47 |
Детали
| Бренд | Orion Fans |
|---|
