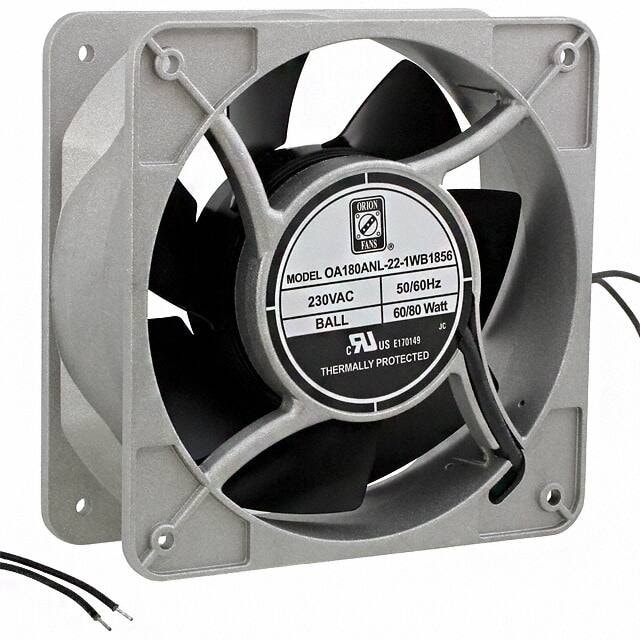

8005183864 OA180ANL-22-1WB1856, AC Fans Axial Fan, 180x180x65mm, 230VAC, 400CFM, 80W, 65dBA, 3250RPM, Ball, Wire, IP56 Hirschmann
21400,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 180mm L x 180mm H Ball 370.0 CFM (10.36mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 76 |
| Вес, кг | 1.7 |
| Fan Type | Tubeaxial |
| Series | OA180ANL-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 180×180 |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Metal |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Square-180mm L x 180mm H |
| Termination | 2 Wire Leads |
| Weight | 3.7 lbs(1.7 kg) |
| Width | 65.00mm |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.75 in H2O(186.8 Pa) |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 370 |
| Шум, дБA | 65 |
| Video File | Harsh Environment Fans |
| Voltage Range | 200 ~ 240VAC |
Детали
| Бренд | Orion Fans |
|---|
