Orion Fans

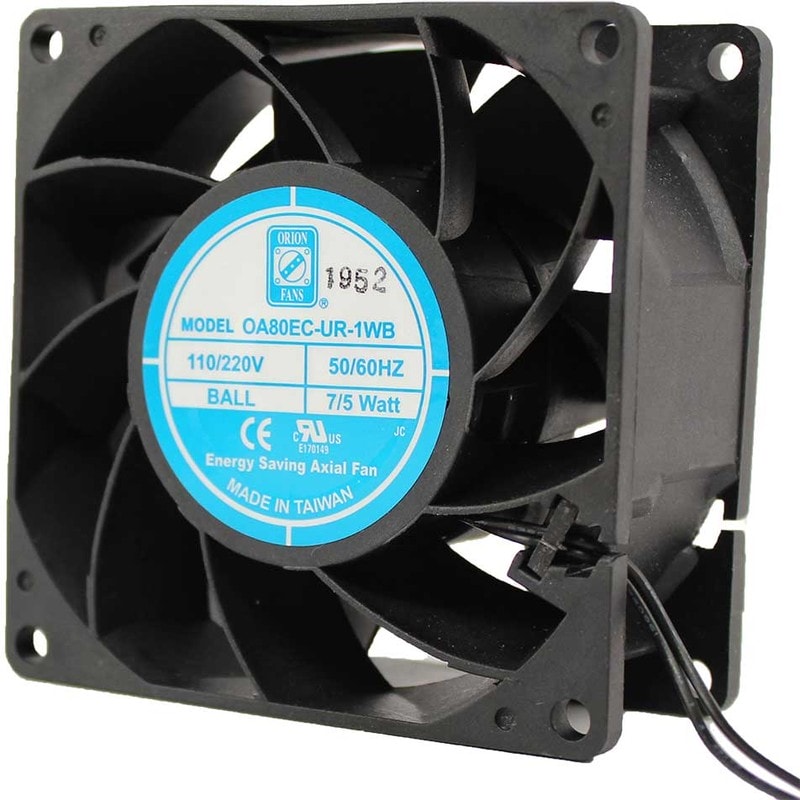

8005183908 OA80EC-UR-1WB, EC Fans EC Axial Fan, Universal Range, 80x80x38mm, 115VAC/230VAC, 38.6CFM, 0.22″H20 Hirschmann
5870,00 ₽
Описание
Fan Tubeaxial 110/220VAC Square — 80mm L x 80mm H Ball 39.0 CFM (1.09mВі/min) 2 Wire Leads
| Вес, г | 180 |
| Потребляемая мощность, Вт | 1.5 |
| Fan Type | Tubeaxial |
| Series | OA80EC-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Dual Voltage, Electronic Commutation(EC) |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.397 lb(180.08 g) |
| Width | 38.00mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Static Pressure | 0.22 in H2O(54.8 Pa) |
| Частота вращения,об./мин. | 3000 |
| Производительность,м.куб./мин. | 39 |
| Шум, дБA | 32 |
| Voltage Range | 85 ~ 265VAC |
Детали
| Бренд | Orion Fans |
|---|
