Orion Fans

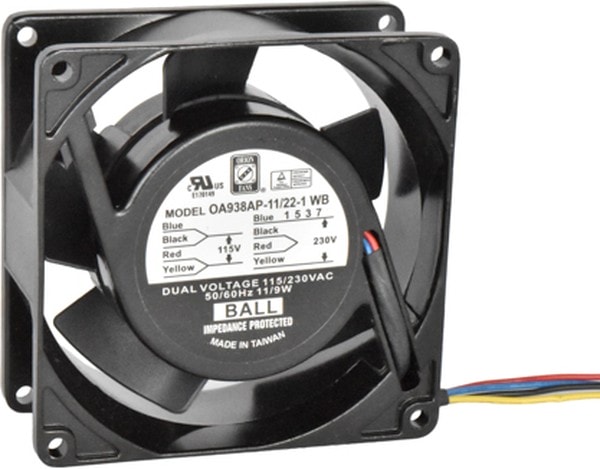

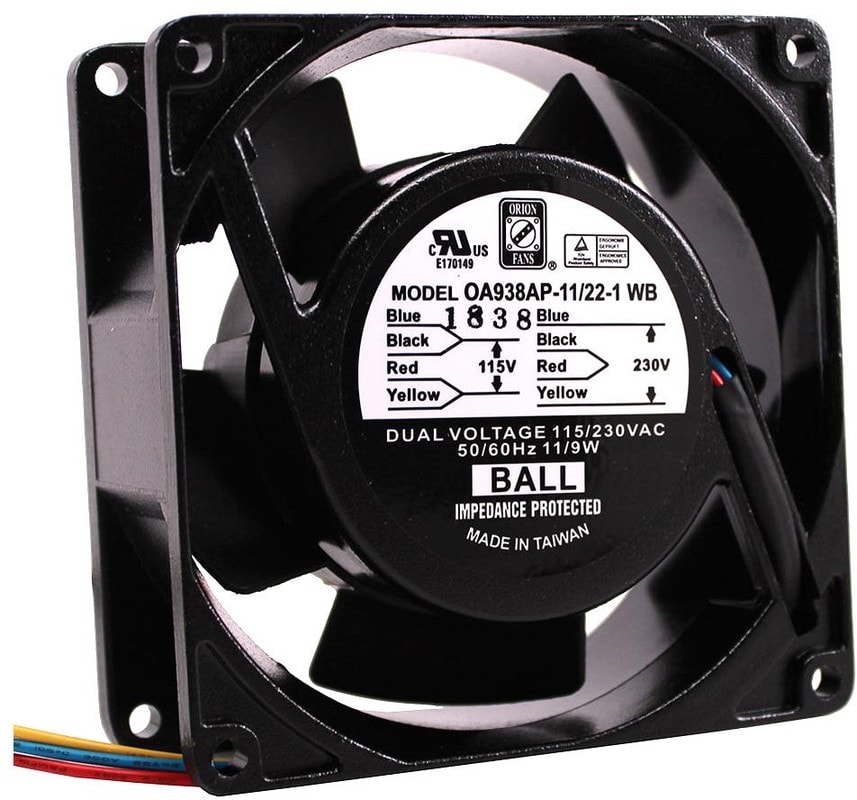

8005183926 OA938AP-11/22-1WB, AC Fans Axial Fan, 92x92x38mm, 115/230VAC, 41CFM, 11W/9W, 33dBA, Ball, Wire Hirschmann
5150,00 ₽
Описание
Fan Tubeaxial 115/230VAC Square — 92mm L x 92mm H Ball 50.0 CFM (1.40mВі/min) 4 Wire Leads
| Вес, г | 444 |
| Потребляемая мощность, Вт | 9 |
| Fan Type | Tubeaxial |
| Noise Level | 32 dB |
| Series | OA938-> |
| Special Features | None |
| Тип подшипника | ball bearing |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Dual Voltage |
| Power Rating | 9 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 4 Wire Leads |
| Width | 38.50mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 50 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115/230 V |
| Единица измерения | шт |
| Static Pressure | 0.22 in H2O(54.8 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 50 |
| Шум, дБA | 33 |
| Линейка продукции | OA938AP Dual Voltage Series |
| Voltage Range | 80 ~ 260VAC |
| Класс Мощности | 9Вт |
| Поток воздуха — куб.фут/мин | 50фут³/мин |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | 4 Lead Wires |
Детали
| Бренд | Orion Fans |
|---|
