Orion Fans

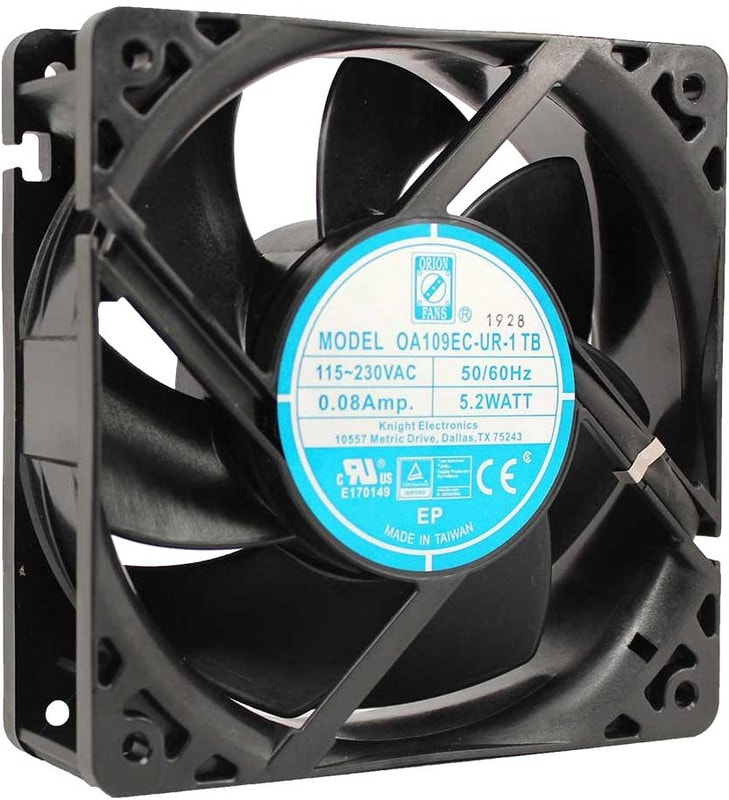

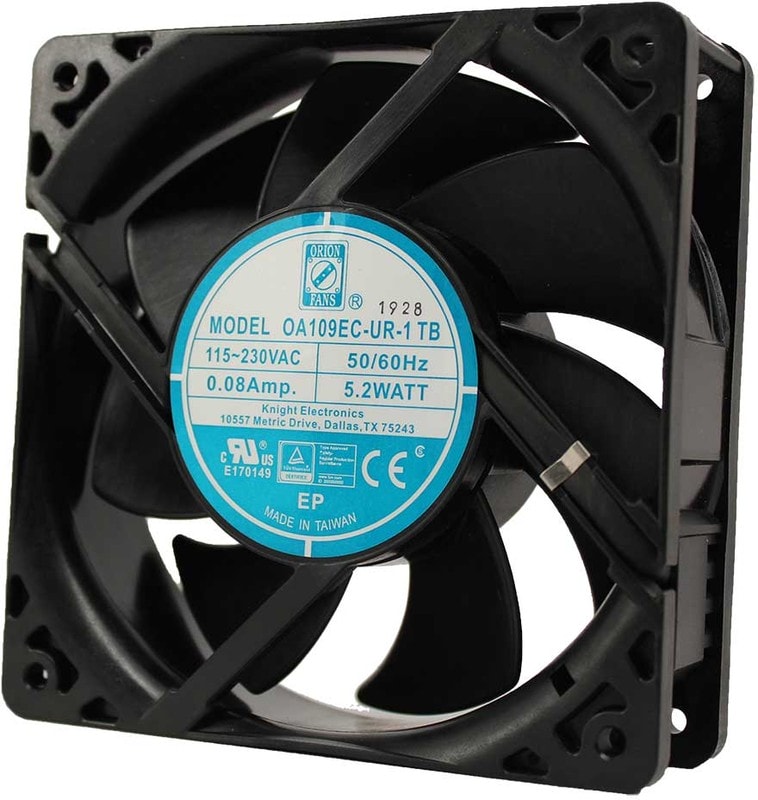

8005493909 OA109EC-UR-1TB, EC Fans EC Fan, Universal Voltage, 120x120x38mm, 110/220VAC, 0.34″ Max. Static Pressure Hirschmann
11380,00 ₽
Описание
AC Fan Axial Ball Bearing 115V/230V 90V to 265V 106CFM 43dB 120 X 120 X 38mm Box
| Mounting | Flange Mount |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 220 |
| Толщина,мм | 38 |
| Packaging | Box |
| Product Category | AC Fan |
| Power Rating | 5.2W |
| Type | Axial |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Bearing Type | Ball Bearing |
| Current Rating | 80mA |
| Air Flow — CFM | 106CFM |
| External Depth | 38mm |
| Fan Frame Size | 120mm |
| Fan Frame Type | Square |
| Noise Rating | 43dBA |
| Nominal Rated Voltage AC | 115V/230V |
| Power Connection Type | Terminals |
| Product Range | OA109EC Series |
| Rated Speed | 3200rpm |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.34inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Square |
| Size (Metric) (mm) | 120 X 120 X 38 |
| Voltage Rating (V) | 115|230 |
| Power Rating (W) | 4.9|5.2 |
| Nominal Speed (r/min) | 3200 |
| Maximum Airflow (CFM) | 106 |
| Noise Level (dB) | 43 |
| Bearings | Ball |
| Line Current (A) | 0.08|0.06 |
| Operating Input Voltage Range (V) | 90 to 265 |
Детали
| Бренд | Orion Fans |
|---|
