Mechatronics

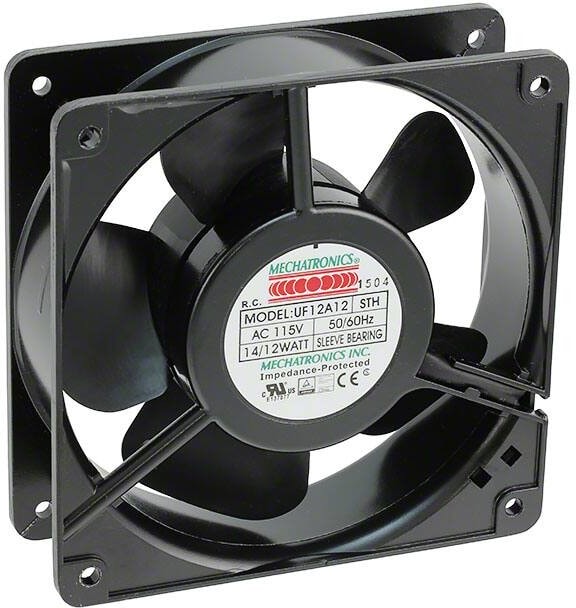

8005743718 UF12A12-STHR, FAN AXIAL 120X38MM 115VAC Hirschmann
3970,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 120mm L x 120mm H Sleeve 106.0 CFM (2.97mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 12 |
| Fan Type | Tubeaxial |
| Series | UF12A-> |
| Тип подшипника | Sleeve |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Approval Agency | CE, cUL, TUV, UL |
| Lifetime @ Temp. | 50000 Hrs @ 25В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -40 ~ 158В°F(-40 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Terminals |
| Weight | 1.2 lbs(544.3 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.160A |
| Static Pressure | 0.35 in H2O(87.2 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 106 |
| Шум, дБA | 46 |
Детали
| Бренд | Mechatronics |
|---|
