Qualtek Electronics
8005765858 FDA2-17255NBHW4F, FAN AXIAL 172X55MM 115VAC WIRE Hirschmann
13170,00 ₽
Описание

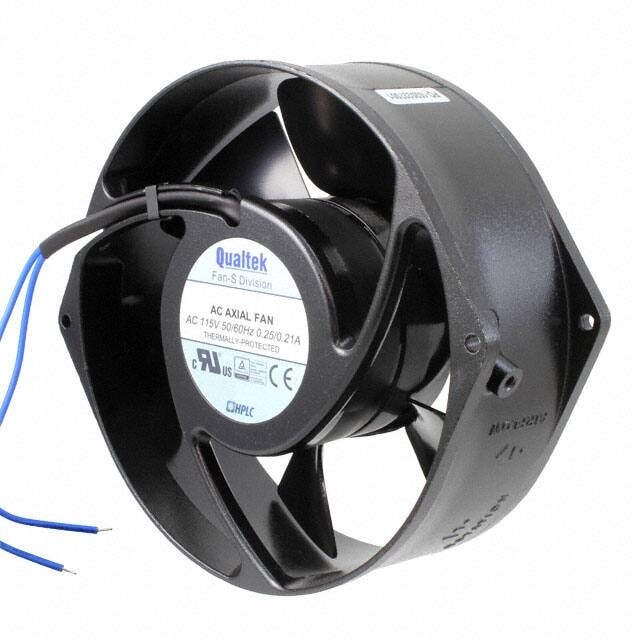

Fan Tubeaxial 115VAC Rectangular/Rounded — 172mm L x 151mm H Ball 240.0 CFM (6.72mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 25 |
| Fan Type | Tubeaxial |
| Series | HPLC, FDA2-17255-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 25В°C |
| Material — Blade | Steel |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-172mm L x 151mm H |
| Termination | 2 Wire Leads |
| Weight | 1.8 lbs(816.5 g) |
| Width | 55.00mm |
| Current Rating (Amps) | 0.210A |
| Static Pressure | 0.531 in H2O(132.3 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 240 |
| Шум, дБA | 61 |
| Environmental Information | http://www.qualtekusa.com/PDFs/RoHS_Declaration.pd |
| California Prop 65 | Warning Information |
Детали
| Бренд | Qualtek Electronics |
|---|
