EBM-PAPST

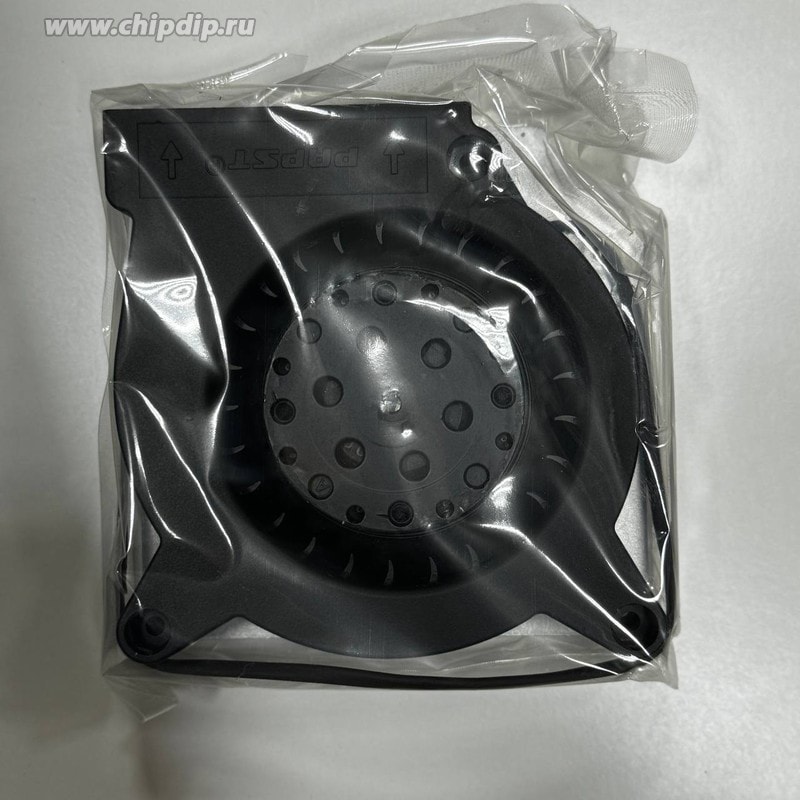

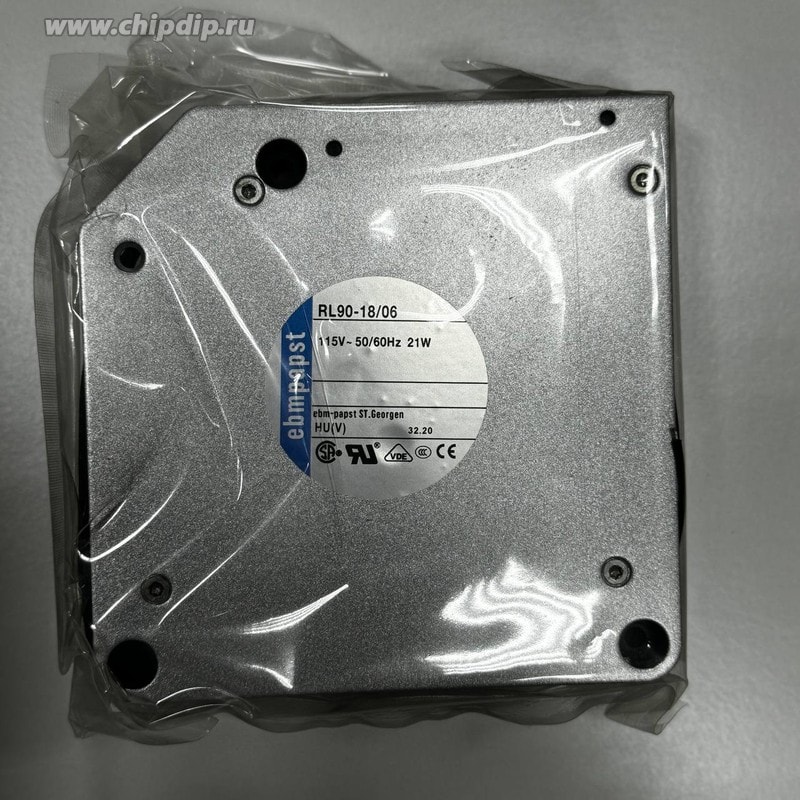

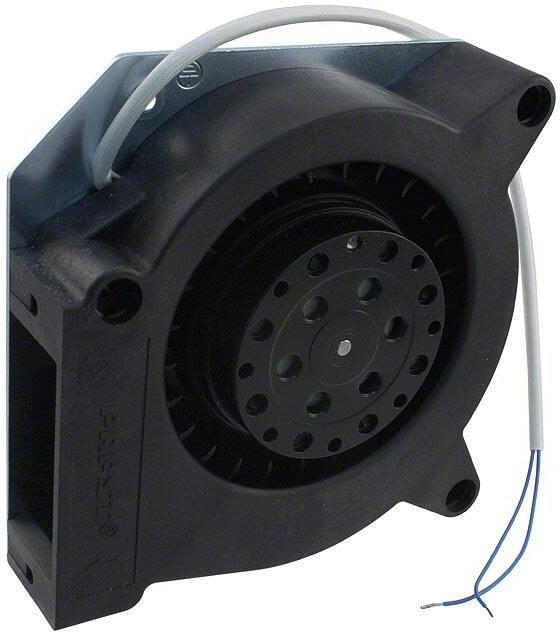

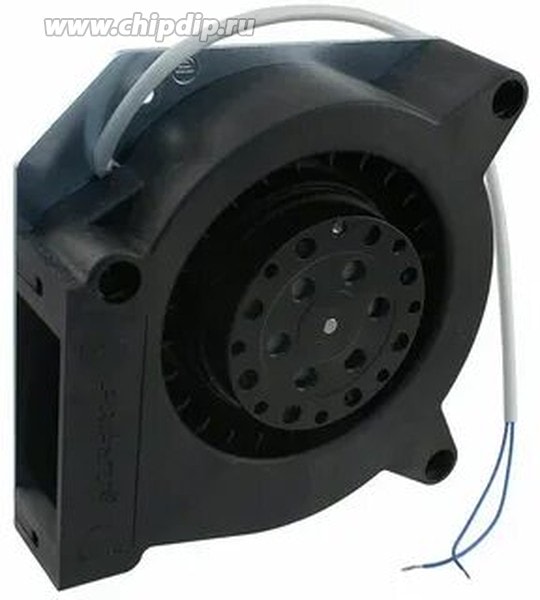

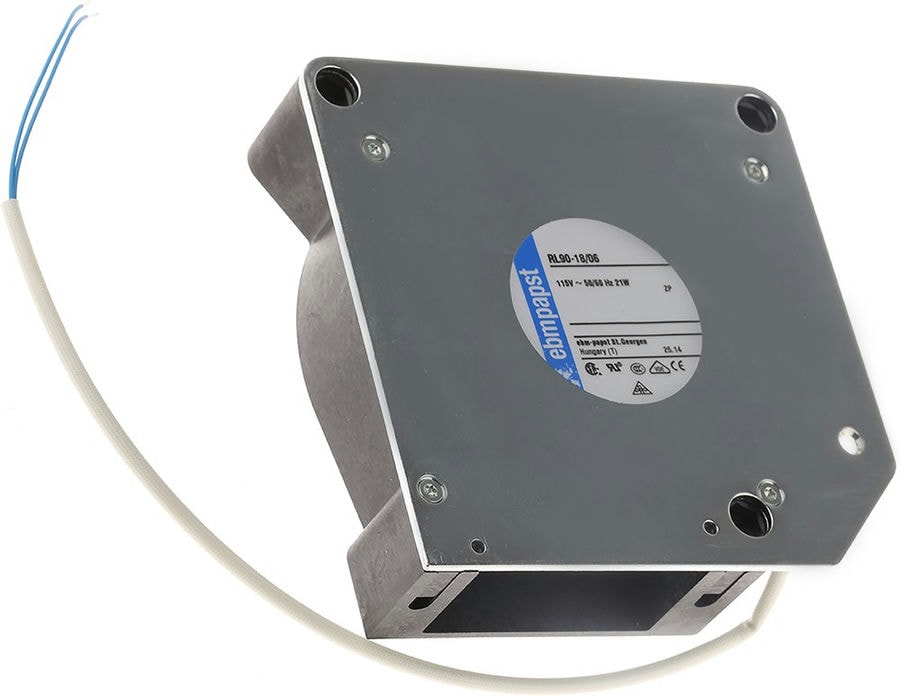

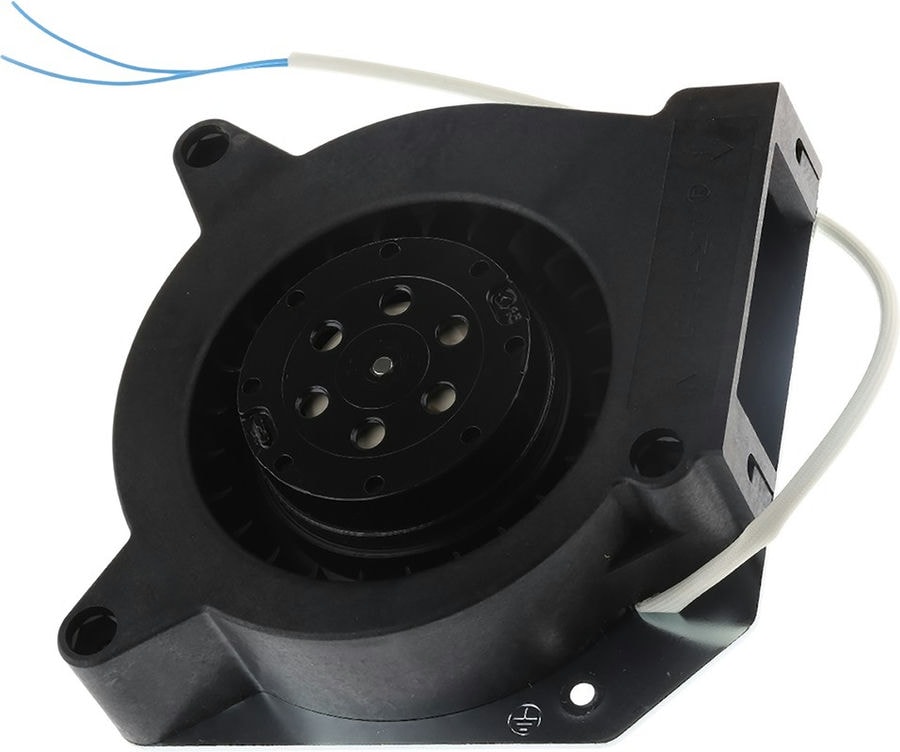

8005770239 RL90-18/06, Fan Blower, Flatpak 115VAC Square — 121mm L x 121mm H Ball 24.7 CFM (0.692m³/min) 2 Wire Leads Hirschmann
17700,00 ₽
Описание
Fan Blower, Flatpak 115VAC Square — 121mm L x 121mm H Ball 24.7 CFM (0.692mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 19.5 |
| Fan Type | Blower, Flatpak |
| Series | RL90N-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 121×121 |
| Рабочее напряжение,В | 115 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6560 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Noise | 60.0dB(A) |
| Lifetime @ Temp. | 37500 Hrs @ 40В°C |
| Material — Blade | Plastic, Fiberglass Reinforced |
| Material — Frame | Plastic, Glass Filled |
| Operating Temperature | -22 ~ 185В°F(-30 ~ 85В°C) |
| Size / Dimension | Square-121mm L x 121mm H |
| Termination | 2 Wire Leads |
| Weight | 1.5 lbs(680.4 g) |
| Width | 37.00mm |
| Blower Type | Centrifugal |
| Частота вращения,об./мин. | 2550 |
| Производительность,м.куб./мин. | 24.7 |
| AC or DC Operation | AC |
| Direction of Curve | Radial |
| Mounting hole diameter | 4.2mm |
| Horizontal Hole Spacing | 100.8mm |
| Mounting Hole Spacing | 104.8×100.8mm |
| Vertical Hole Spacing | 104.8mm |
Детали
| Бренд | EBM-PAPST |
|---|
