Orion Fans

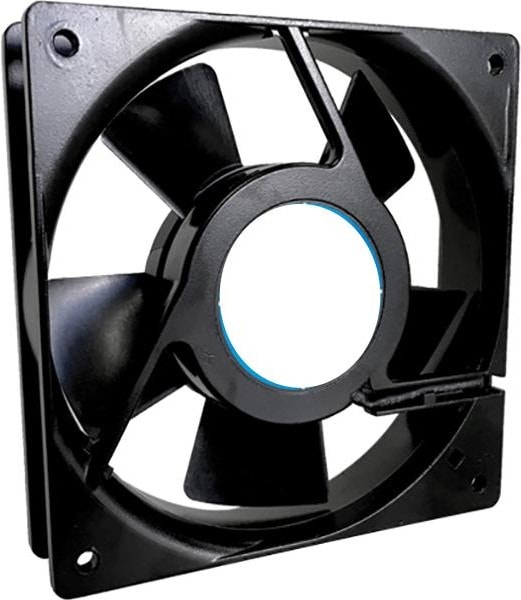

8005771579 OA125AP-11-3TB, Fan Tubeaxial 115VAC Square — 120mm L x 120mm H Ball 53.0 CFM (1.48m³/min) 2 Terminals Hirschmann
4790,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 120.1mm L x 120.1mm H Ball 42.0 CFM (1.18mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 11 |
| Fan Type | Tubeaxial |
| Mounting | Through Hole |
| Series | OA125-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 25 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Type | PC Terminal Block |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-120.1mm L x 120.1mm H |
| Termination | 2 Terminals |
| Weight | 0.73 lb(331.12 g) |
| Width | 25.00mm |
| COO | DE |
| RoHS | Yes |
| Supplier Standard Pack | 50 |
| Единица измерения | шт |
| Static Pressure | 0.11 in H2O(27.4 Pa) |
| Частота вращения,об./мин. | 2000 |
| Производительность,м.куб./мин. | 42 |
| Шум, дБA | 33 |
| Линейка продукции | OA125 Series |
| Wire size | 14-26 AWG |
| Voltage Range | 80 ~ 130VAC |
| Класс Мощности | 11Вт |
| Поток воздуха — куб.фут/мин | 53фут³/мин |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | Terminals |
| Alias/AKA | SMKDSP 1 5/6 |
| Gender | N/A |
| Pitch | 5 mm |
| Termination Method | Solder |
| Number of Circuits | 6 |
| Maximum Voltage Rating | 400 V |
| Maximum Current Rating | 17.5 A |
Детали
| Бренд | Orion Fans |
|---|
