Orion Fans

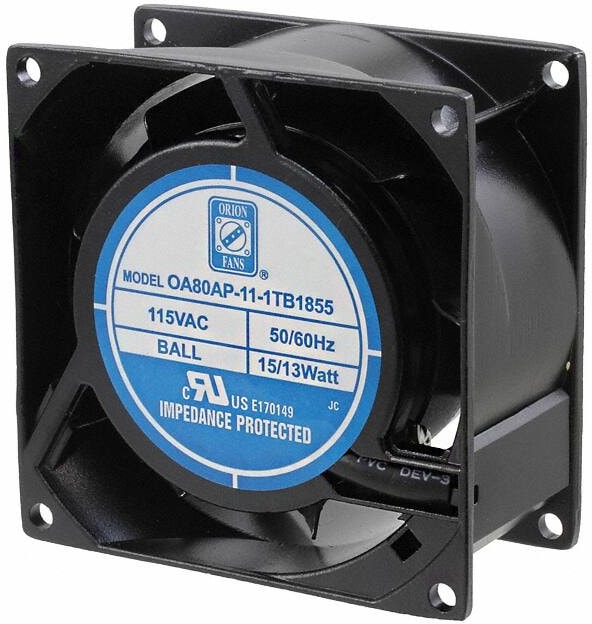

8005850061 OA80AP-11-1TB1855, Fan Tubeaxial 115VAC Square — 80mm L x 80mm H Ball 33.0 CFM (0.924m³/min) 2 Terminals Hirschmann
9490,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 80mm L x 80mm H Ball 33.0 CFM (0.924mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 13 |
| Fan Type | Tubeaxial |
| Series | OA80-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Metal |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Terminals |
| Weight | 0.95 lb(430.91 g) |
| Width | 38.00mm |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.18 in H2O(44.8 Pa) |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 33 |
| Шум, дБA | 35 |
| Video File | Harsh Environment Fans |
| Voltage Range | 100 ~ 120VAC |
Детали
| Бренд | Orion Fans |
|---|
