Orion Fans

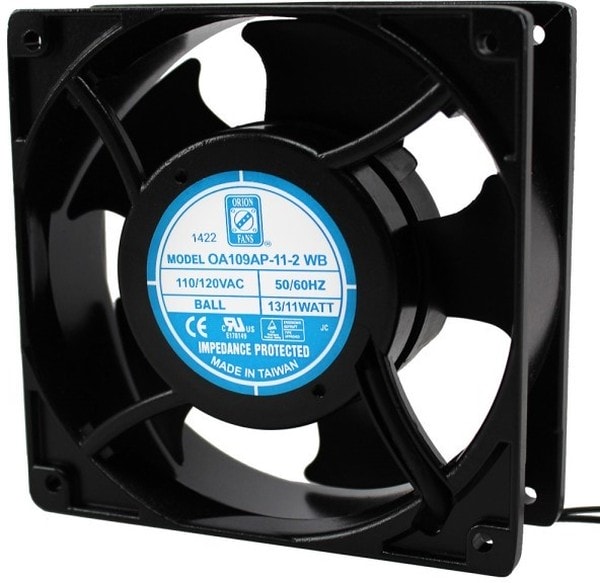

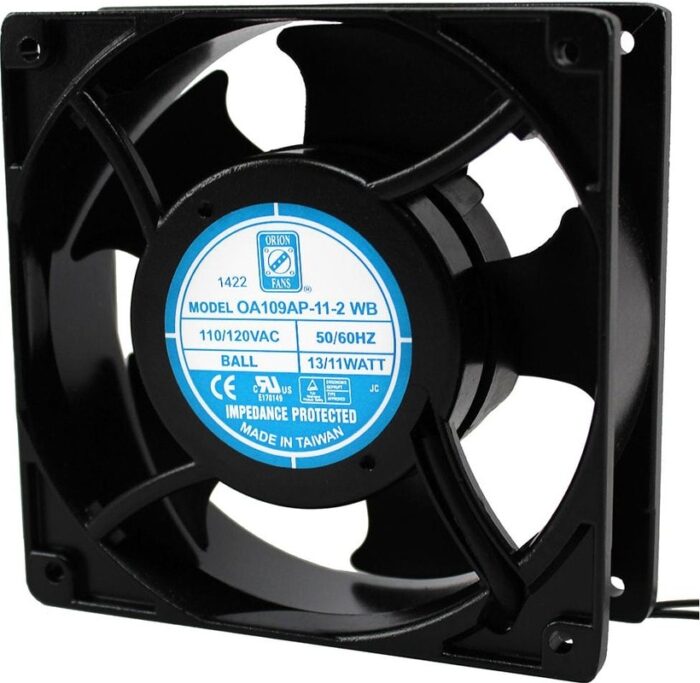

8005856645 OA109AP-11-2WB, Fan Tubeaxial 115VAC Square — 120mm L x 120mm H Ball 71.0 CFM (1.99m³/min) 2 Wire Leads Hirschmann
4790,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 120mm L x 120mm H Ball 71.0 CFM (1.99mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 11 |
| Fan Type | Tubeaxial |
| Noise Level | 35 dB |
| Series | OA109-> |
| Special Features | None |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 11 W |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Weight | 1.2 lbs(544.3 g) |
| Width | 38.50mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 71 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Static Pressure | 0.24 in H2O(59.8 Pa) |
| Частота вращения,об./мин. | 2300 |
| Производительность,м.куб./мин. | 71 |
| Шум, дБA | 35 |
| Линейка продукции | OA109 Series |
| Voltage Range | 80 ~ 130VAC |
| Класс Мощности | 11Вт |
| Поток воздуха — куб.фут/мин | 71фут³/мин |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | 2 Lead Wires |
Детали
| Бренд | Orion Fans |
|---|
