Comair Rotron

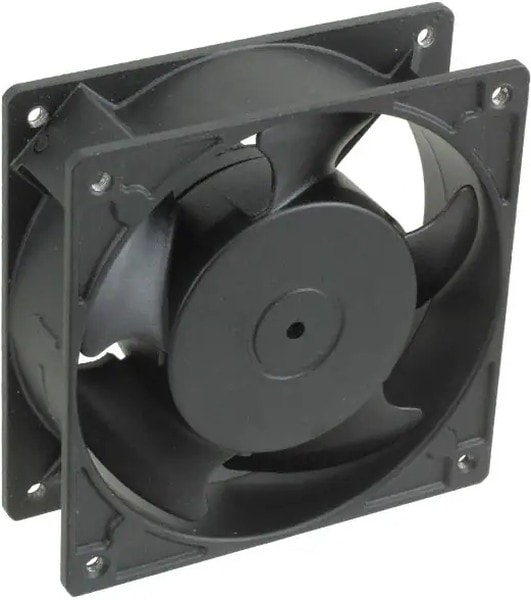

8005862867 19028422A, Fan Tubeaxial 110VAC Square — 120mm L x 120mm H Ball 100.0 CFM (2.80m³/min) 2 Terminals Hirschmann
10220,00 ₽
Описание
Fan Tubeaxial 110VAC Square — 120mm L x 120mm H Ball 100.0 CFM (2.80mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 20 |
| Fan Type | Tubeaxial |
| Series | Muffin XL AC-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 110 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, cUL, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Magnesium Alloy |
| Operating Temperature | 32 ~ 158В°F(0 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Terminals |
| Weight | 1 lb(453.59 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.260A |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.25 in H2O(62.3 Pa) |
| Частота вращения,об./мин. | 2850 |
| Производительность,м.куб./мин. | 100 |
| Шум, дБA | 52 |
| Voltage Range | 103 ~ 126VAC |
Детали
| Бренд | Comair Rotron |
|---|
