Orion Fans

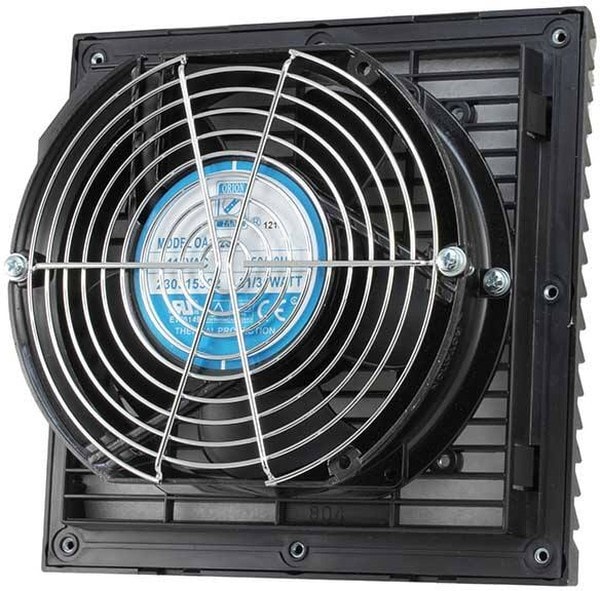

8005864952 OA172LFG111T, Fan Tubeaxial 115VAC Square — 204mm L x 204mm H Ball 235.0 CFM (6.58m³/min) 2 Terminals Hirschmann
15020,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 204mm L x 204mm H Ball 235.0 CFM (6.58mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 35 |
| Fan Type | Tubeaxial |
| Series | OA172-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Kit |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -40 ~ 158В°F(-40 ~ 70В°C) |
| Size / Dimension | Square-204mm L x 204mm H |
| Termination | 2 Terminals |
| Width | 77.50mm |
| Ingress Protection | IP54-Dust Protected, Water Resistant |
| Static Pressure | 0.7 in H2O(174.4 Pa) |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 235 |
| Шум, дБA | 52 |
| Video File | Orion Fans’ Louvered Fan KitOrion Louvered Filter |
| Voltage Range | 80 ~ 130VAC |
Детали
| Бренд | Orion Fans |
|---|
