Mechatronics

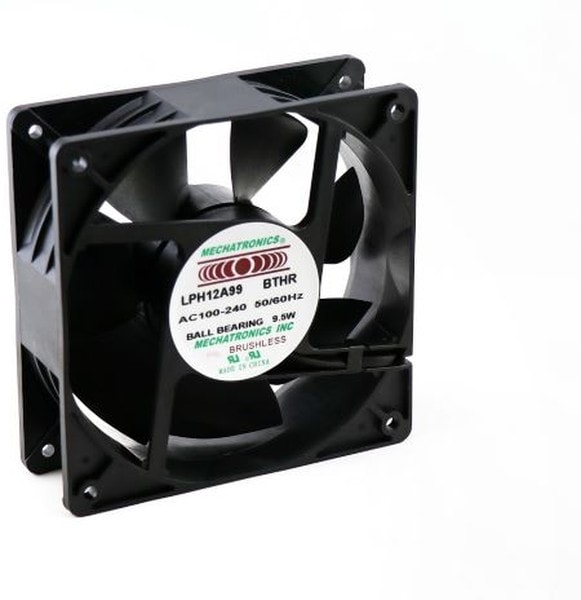

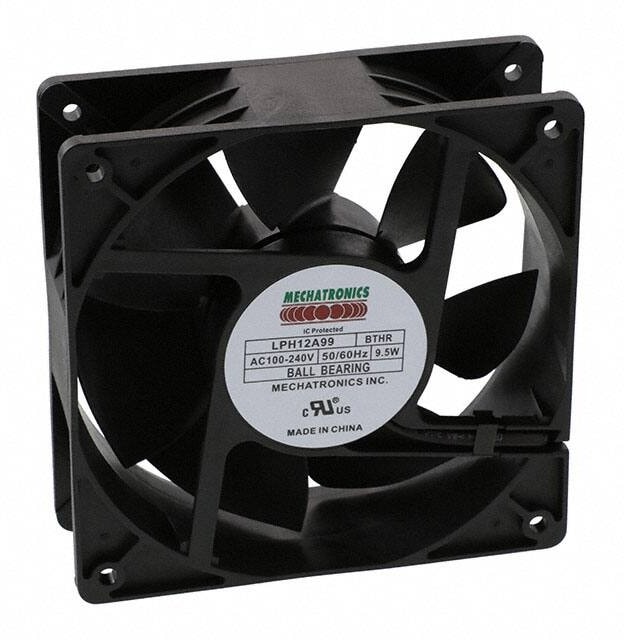

8005878921 LPH12A99-BTHR, Fan Tubeaxial 100 ~ 240VAC Square — 120mm L x 120mm H Ball 123.9 CFM (3.47m³/min) 2 Terminals Hirschmann
6100,00 ₽
Описание
Fan Tubeaxial 100 ~ 240VAC Square — 120mm L x 120mm H Ball 123.9 CFM (3.47mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 9.5 |
| Fan Type | Tubeaxial |
| Noise Level | 49 dB |
| Series | LPH12A99-> |
| Special Features | N/A |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 100 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Auto Restart, Electronic Commutation(EC) |
| Power Rating | 9.5 W |
| Lifetime @ Temp. | 50000 Hrs @ 25В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -40 to 70 °C |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Terminals |
| Weight | 0.631 lb(286.20 g) |
| Width | 38.50mm |
| Category | AC Fan1342 |
| COO | CN |
| Housing Material | Plastic1345 |
| Maximum Airflow | 124 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 100 to 240 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.180A |
| Static Pressure | 0.363 in H2O(90.5 Pa) |
| Частота вращения,об./мин. | 3500 |
| Производительность,м.куб./мин. | 123.9 |
| Шум, дБA | 49 |
Детали
| Бренд | Mechatronics |
|---|
