EBM-PAPST

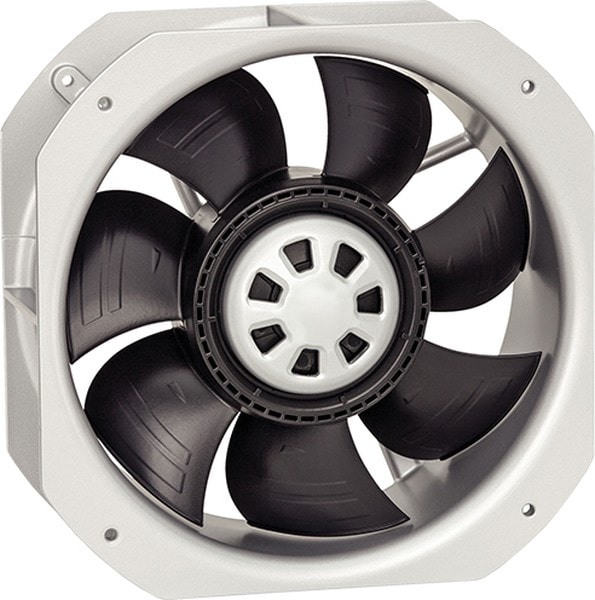

8005886529 W3G200-HD23-10, Fan Tubeaxial 115VAC Square — 225mm L x 225mm H Ball 623.0 CFM (17.44m³/min) Terminal Block Hirschmann
62420,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 225mm L x 225mm H Ball 623.0 CFM (17.44m³/min) Terminal Block
| Потребляемая мощность, Вт | 65 |
| Вес, кг | 1.7 |
| Fan Type | Tubeaxial |
| Noise Level | N/A |
| Special Features | None |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| Features | Electronic Commutation(EC) |
| Power Rating | 65 W |
| Approval Agency | CE, cURus, VDE |
| Operating Temperature | -13 ~ 140°F(-25 ~ 60°C) |
| Termination | Terminal Block |
| Width | 80.00mm |
| Category | AC Fan |
| COO | DE |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 623 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Ingress Protection | IP54-Dust Protected, Water Resistant |
| Static Pressure | 0.38 in H2O(94.6 Pa) |
| Частота вращения,об./мин. | 2900 |
| Производительность,м.куб./мин. | 623 |
Детали
| Бренд | EBM-PAPST |
|---|
