Orion Fans

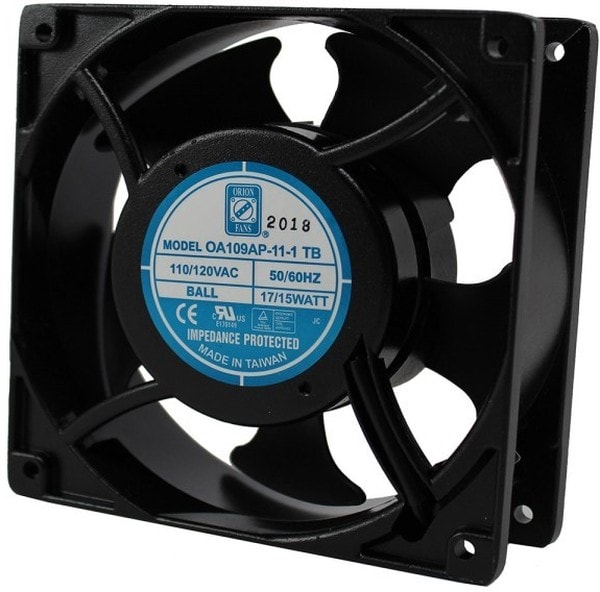

8005889638 OA109AP-11-1TB, FAN AXIAL 120X38MM 115VAC TERM Hirschmann
3840,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 120mm L x 120mm H Ball 110.0 CFM (3.08mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 15 |
| Fan Type | Tubeaxial |
| Noise Level | 42 dB |
| Series | OA109-> |
| Special Features | None |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 15 W |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Terminals |
| Weight | 1.2 lbs(544.3 g) |
| Width | 38.50mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 110 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Static Pressure | 0.28 in H2O(69.7 Pa) |
| Частота вращения,об./мин. | 3000 |
| Производительность,м.куб./мин. | 110 |
| Шум, дБA | 42 |
| Voltage Range | 80 ~ 130VAC |
Детали
| Бренд | Orion Fans |
|---|
