Comair Rotron

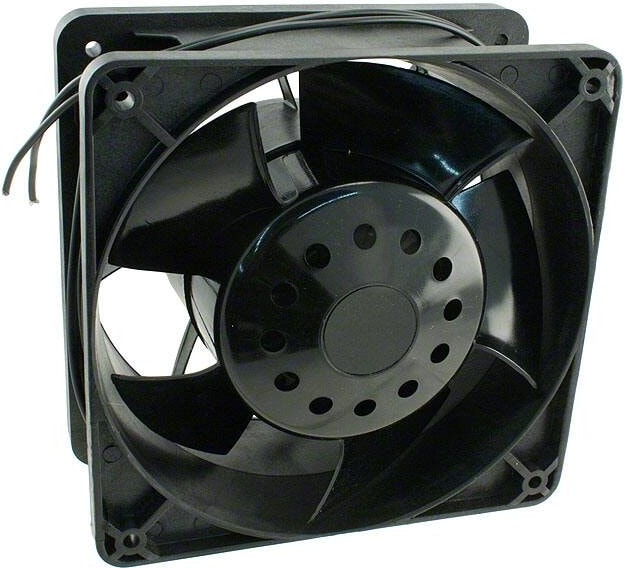

8005890666 19020177A, Fan Tubeaxial 230VAC Square — 176mm L x 176mm H Ball 330.0 CFM (9.24m³/min) 2 Wire Leads Hirschmann
19970,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 176mm L x 176mm H Ball 330.0 CFM (9.24mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 59 |
| Fan Type | Tubeaxial |
| Series | Tarzan AC-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Locked Rotor Sensor |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp. | 25000 Hrs @ 40В°C |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-176mm L x 176mm H |
| Termination | 2 Wire Leads |
| Weight | 5 lbs(2.3 kg) |
| Width | 112.0mm |
| Current Rating (Amps) | 0.250A |
| Static Pressure | 0.871 in H2O(216.9 Pa) |
| Частота вращения,об./мин. | 3350 |
| Производительность,м.куб./мин. | 330 |
| Шум, дБA | 65.4 |
Детали
| Бренд | Comair Rotron |
|---|
