Orion Fans

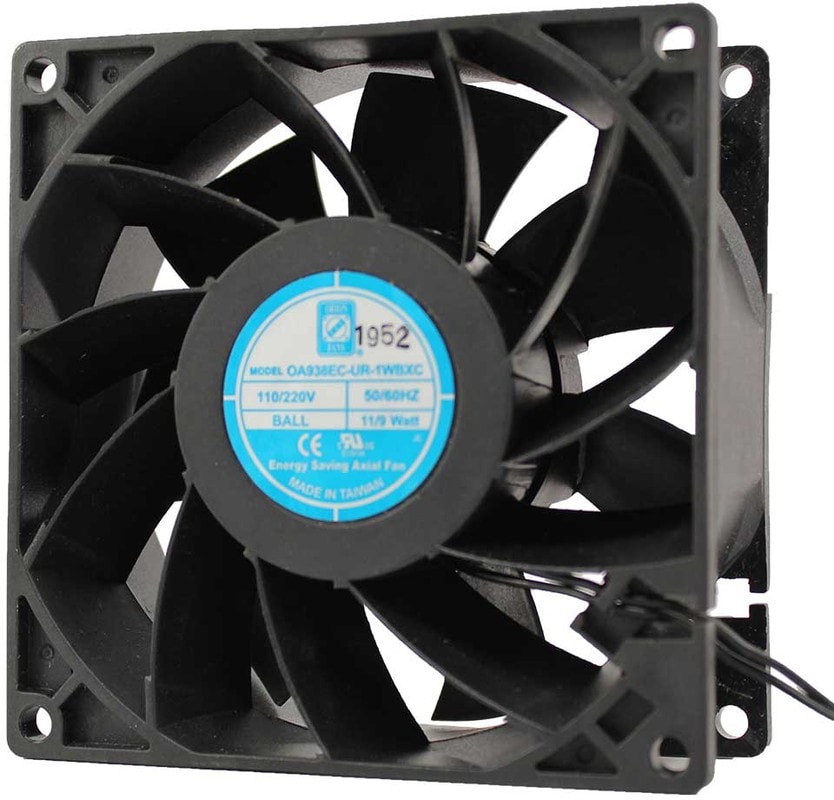

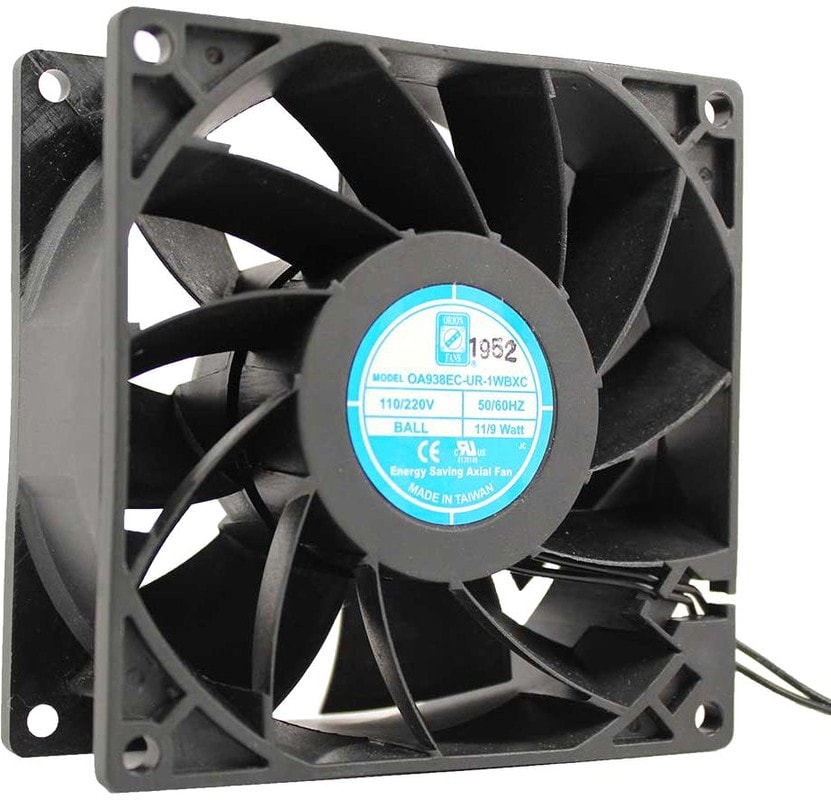

8005904486 OA938EC-UR-1WBXC, Fan Tubeaxial 110/220VAC Square — 92mm L x 92mm H Ball 88.0 CFM (2.46m³/min) 2 Wire Leads Hirschmann
7630,00 ₽
Описание
OA_EC Electronically Commutated Fans Orion Fans OA_EC Electronically Commutated (EC) Fans feature a 90VAC to 265VAC voltage range and a 3000 to 3950RPM rated speed, depending on the model. EC Fans create a low power, energy-saving cooling solution for AC applications and have a 31 to 57dB range. Orion Fans OA_EC EC Fans have either a plastic or aluminum frame construction and a -20° to +70°C operating temperature.
| Потребляемая мощность, Вт | 9 |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 220 |
| Толщина,мм | 38 |
| Brand | Orion Fans |
| Factory Pack Quantity | 1 |
| Manufacturer | Orion Fans |
| Product Category | EC Fans |
| Product Type | EC Fans |
| ECCN | EAR99 |
| Features | Universal Range |
| Current Type | EC |
| Power Rating | 11W |
| Termination Style | Wire Leads |
| Type | Axial |
| COO | TW |
| Housing Material | Plastic |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 88CFM |
| External Depth | 38mm |
| Fan Frame Size | 92mm |
| Fan Frame Type | Square |
| Noise Rating | 52dBA |
| Nominal Rated Voltage AC | 110V/220V |
| Power Connection Type | 2 Lead Wires |
| Product Range | OA938EC XC Series |
| Rated Speed | 4200rpm |
| Частота вращения,об./мин. | 4200 |
| Производительность,м.куб./мин. | 88 |
| Шум, дБA | 52 |
Детали
| Бренд | Orion Fans |
|---|
