Orion Fans

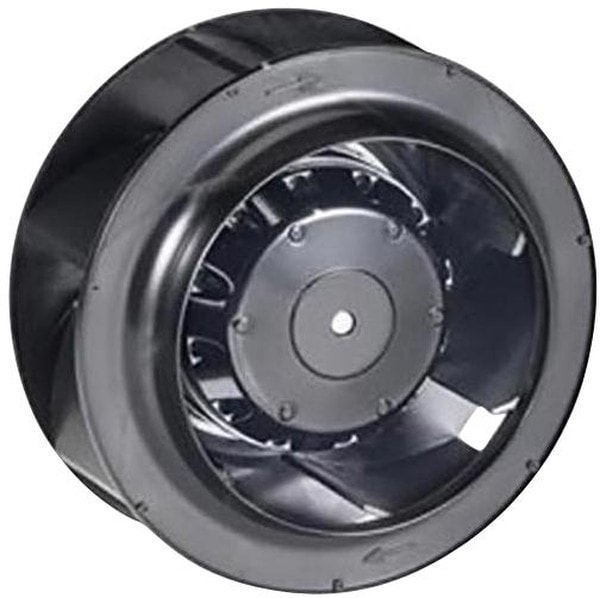

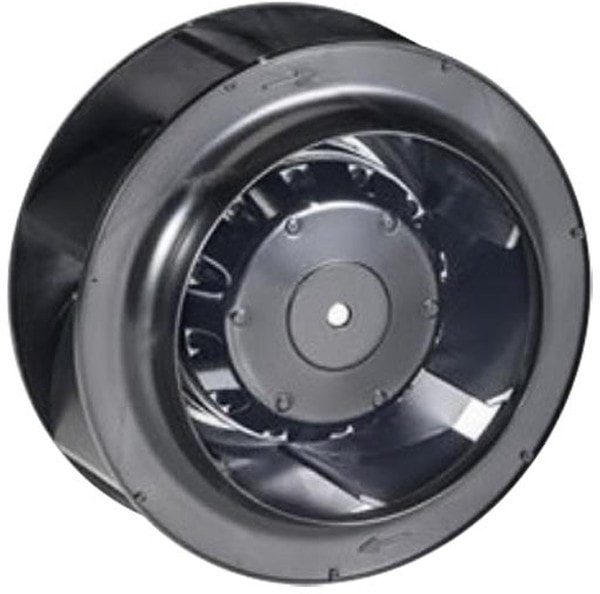

8005919044 OAB13372-22-1WB, Fan Motorized Impellers 230VAC Round — 133mm Dia Ball 188.0 CFM (5.26m³/min) 2 Wire Leads Hirschmann
18790,00 ₽
Описание
Fan Motorized Impellers 230VAC Round — 133mm Dia Ball 188.0 CFM (5.26m³/min) 2 Wire Leads
| Вес, г | 907 |
| Потребляемая мощность, Вт | 39 |
| Fan Type | Motorized Impellers |
| Supply Voltage | 230VAC |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| Features | Thermal Overload Protector(TOP) |
| IP Rating | IP55 |
| Power Rating | 39W |
| Operating Temperature | -40 ~ 140°F(-40 ~ 60°C) |
| Termination | 2 Wire Leads |
| Width | 72.50mm |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.88 in H2O(219.2 Pa) |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 188CFM |
| External Depth | 72mm |
| Fan Frame Size | 133mm |
| Noise Rating | 60dB |
| Power Connection Type | 2 Lead Wires |
| Product Range | OAB13372 Series |
| Blower Type | Motorized Impeller |
| Voltage Type | AC |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 188 |
| Шум, дБA | 60 |
Детали
| Бренд | Orion Fans |
|---|
