Orion Fans

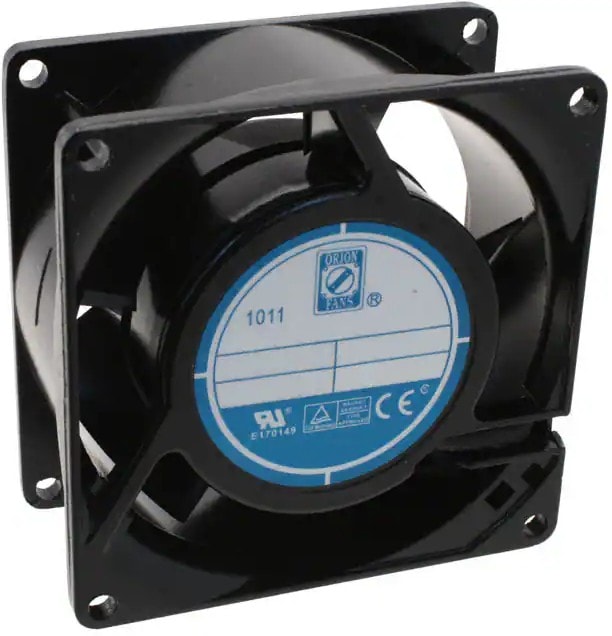

8005920413 OA80AP-11-1TB, Fan Tubeaxial 115VAC Square — 80mm L x 80mm H Ball 30.0 CFM (0.840m³/min) 2 Terminals Hirschmann
5070,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 80mm L x 80mm H Ball 30.0 CFM (0.840mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 9 |
| Fan Type | Tubeaxial |
| Noise Level | 36 dB |
| Series | OA80-> |
| Special Features | None |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 9 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Terminals |
| Width | 38.00mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 30 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.120A |
| Static Pressure | 0.22 in H2O(54.8 Pa) |
| Частота вращения,об./мин. | 3000 |
| Производительность,м.куб./мин. | 30 |
| Шум, дБA | 36 |
| Video File | Harsh Environment Fans |
| Voltage Range | 103 ~ 126VAC |
Детали
| Бренд | Orion Fans |
|---|
