EBM-PAPST

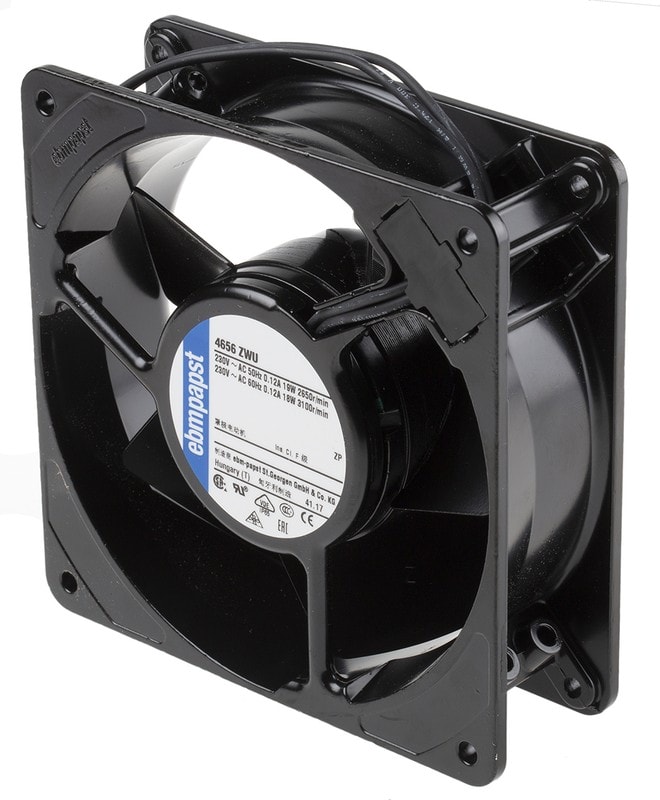

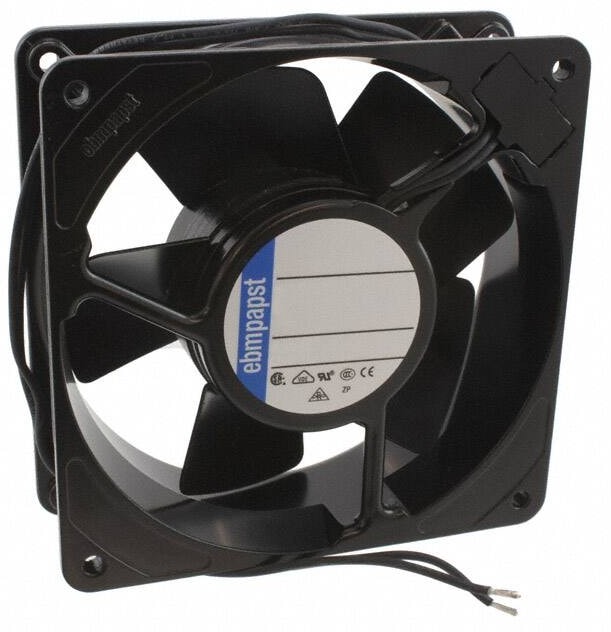

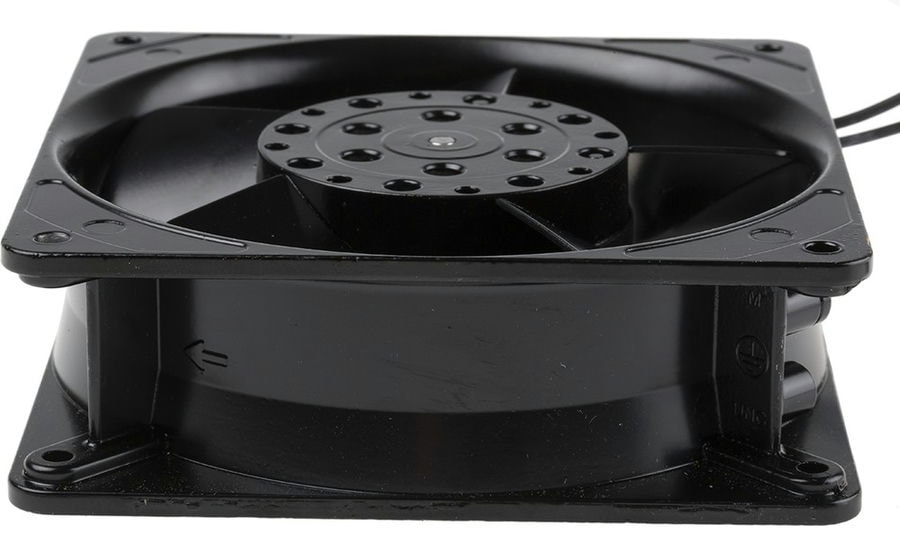

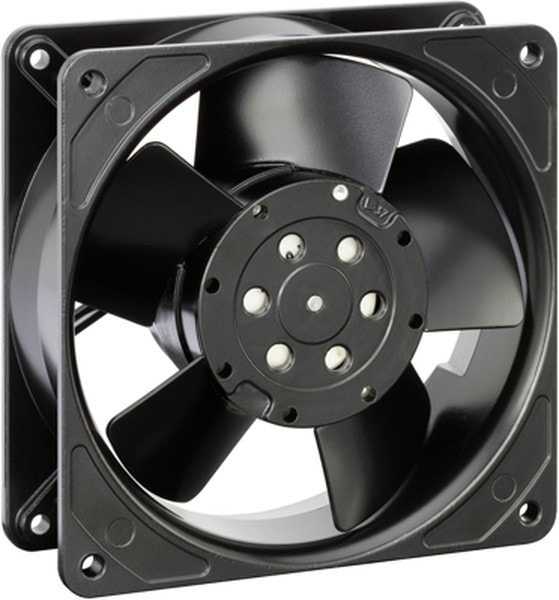

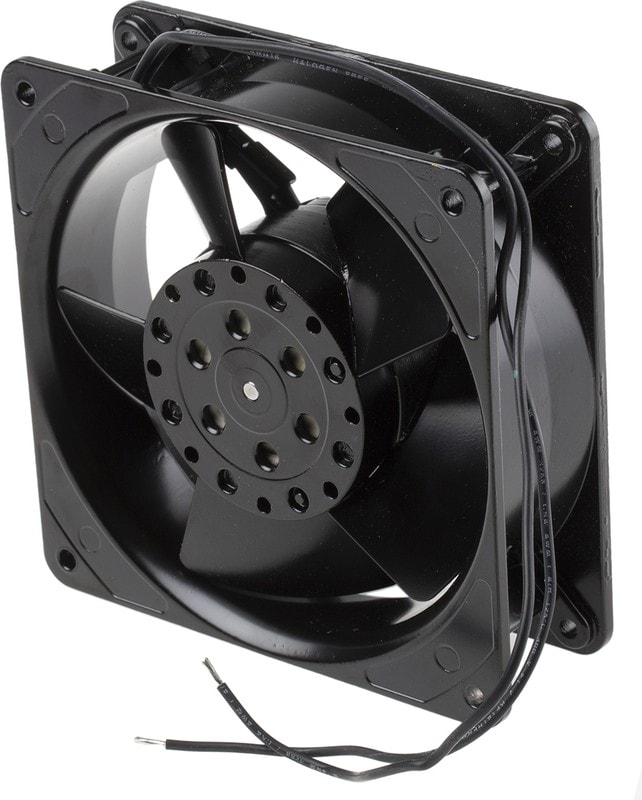

8005933560 4656ZWU, Fan Tubeaxial 230VAC Square — 119mm L x 119mm H Ball 105.9 CFM (2.97m³/min) 2 Wire Leads Hirschmann
18890,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 119mm L x 119mm H Ball 105.9 CFM (2.97mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 17 |
| Fan Type | Tubeaxial |
| Noise Level | 42 dB |
| Series | 4000ZU-> |
| Special Features | IP54 |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| IP Rating | IP54 |
| Power Rating | 17 W |
| Approval Agency | CCC, CE, CSA, UL, VDE |
| Lifetime @ Temp. | 37500 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Metal |
| Operating Temperature | -40 ~ 176В°F(-40 ~ 80В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Wire Leads |
| Width | 38.00mm |
| Category | AC Fan |
| COO | CN |
| Housing Material | Metal |
| Maximum Airflow | 106 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Power consumption | 19 W |
| Rated voltage | 230 V |
| Sound pressure level | 44 db |
| speed | 2650 1/min |
| Type of bearing | ball bearing |
| Version | AC axial fan |
| Volume flow | 130 m³/h |
| Ingress Protection | IP65-Dust Tight, Water Resistant |
| Static Pressure | 0.321 in H2O(80.0 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 105.9 |
| Шум, дБA | 42 |
| AC or DC Operation | AC |
| Direction of Curve | Forward |
| Sensor Type | Voltage Output |
Детали
| Бренд | EBM-PAPST |
|---|
