Orion Fans

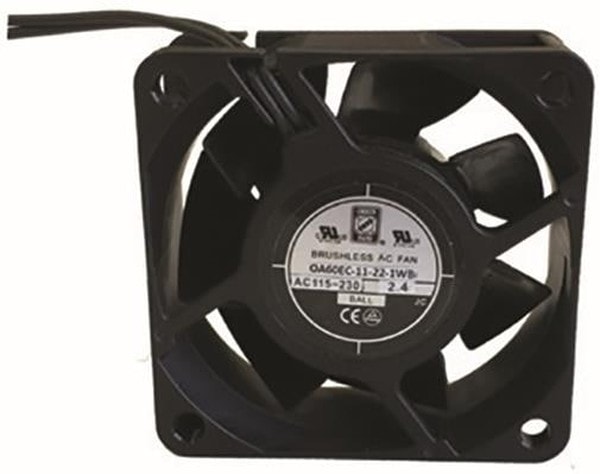

8005936154 OA60EC-UR-1WBIP68A, Fan Tubeaxial 95 ~ 264VAC Square — 60mm L x 60mm H Ball 19.5 CFM (0.546m³/min) 2 Wire Leads Hirschmann
11370,00 ₽
Описание
OA_EC Electronically Commutated Fans
Orion Fans OA_EC Electronically Commutated (EC) Fans feature a 90V AC to 265V AC voltage range and a 3000 to 3950RPM rated speed, depending on the model. EC Fans create a low power, energy-saving cooling solution for AC applications and have a 31 to 57dB range. Orion Fans OA_EC EC Fans have either a plastic or aluminum frame construction and a -20° to +70°C operating temperature.
| Потребляемая мощность, Вт | 2.1 |
| Series | OA60EC-ATEX |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 25 |
| Brand | Orion Fans |
| Manufacturer | Orion Fans |
| Product Category | EC Fans |
| Product Type | EC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | Universal Range |
| Current Type | EC |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP68 |
| Power Rating | 2.4W |
| Termination Style | Wire Leads |
| Type | Axial |
| COO | TW |
| Housing Material | Plastic |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Bearing Type | Ball Bearing |
| Current Rating | 90mA |
| Pressure Type | 0.17 in H2O |
| Air Flow — CFM | 19.5CFM |
| External Depth | 25mm |
| Fan Frame Size | 60mm |
| Fan Frame Type | Square |
| Noise Rating | 31dBA |
| Nominal Rated Voltage AC | 115V/230V |
| Power Connection Type | 2 Lead Wires |
| Product Range | OA60EC IP68-ATEX Series |
| Rated Speed | 3950rpm |
| Частота вращения,об./мин. | 3950 |
| Производительность,м.куб./мин. | 19.5 |
| Шум, дБA | 31 |
Детали
| Бренд | Orion Fans |
|---|
