Sunon

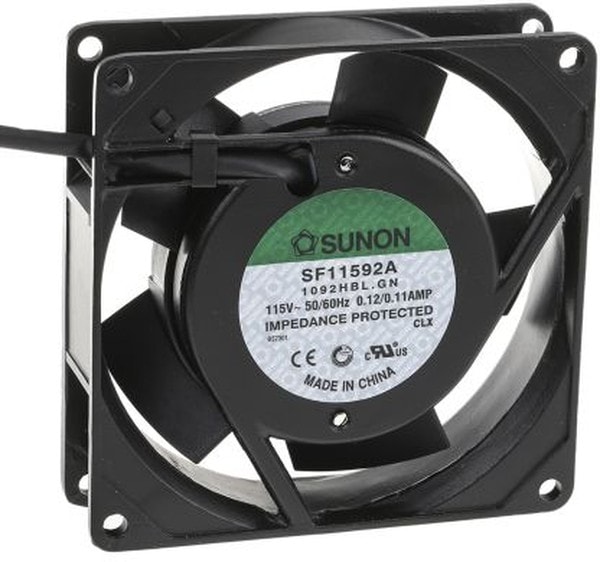

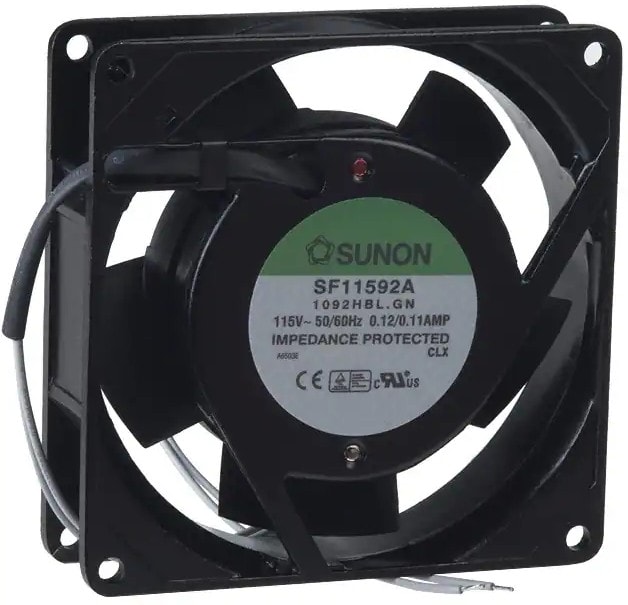

8005947682 SF11592A-1092HBL.GN, Fan Tubeaxial 115VAC Square — 91.5mm L x 91.5mm H Ball 37.0 CFM (1.04m³/min) 2 Wire Leads Hirschmann
6250,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 91.5mm L x 91.5mm H Ball 37.0 CFM (1.04mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 12 |
| Fan Type | Tubeaxial |
| Noise Level | 37.4 dB |
| Series | SF |
| Special Features | High Speed |
| Высота | 92мм |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Brand | Sunon |
| Factory Pack Quantity | 30 |
| Manufacturer | Sunon |
| Product Category | AC Fans |
| Product Type | AC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Airflow | 37 CFM(1.05 m3/min) |
| Current Type | AC |
| Factory Pack Quantity: Factory Pack Quantity | 50 |
| Noise | 40 dBA |
| Operating Supply Voltage | 115 VAC |
| Power Rating | 12.13 W |
| Termination Style | Wire Leads |
| Type | Axial |
| Approval Agency | CE, CUR, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-91.5mm L x 91.5mm H |
| Termination | 2 Wire Leads |
| Weight | 0.617 lb(280.00 g) |
| Width | 25.50mm |
| Category | AC Fan |
| COO | PH |
| Housing Material | Aluminum Alloy |
| Maximum Airflow | 30.37 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 30 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| speed | 2850 RPM |
| Current Rating (Amps) | 0.110A |
| Static Pressure | 0.19 in H2O(47.3 Pa) |
| Bearing Type | Ball |
| Part # Aliases | A09000400G-00 |
| Pressure Type | 0.19 in H2O |
| Частота вращения,об./мин. | 2850 |
| Производительность,м.куб./мин. | 37 |
| Шум, дБA | 40 |
| Voltage Range | 85 ~ 125VAC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
| Размеры | 92x92x25мм |
| Управление посредством переменного или постоянного тока | Перем.ток |
Детали
| Бренд | Sunon |
|---|
