Nexperia B.V.

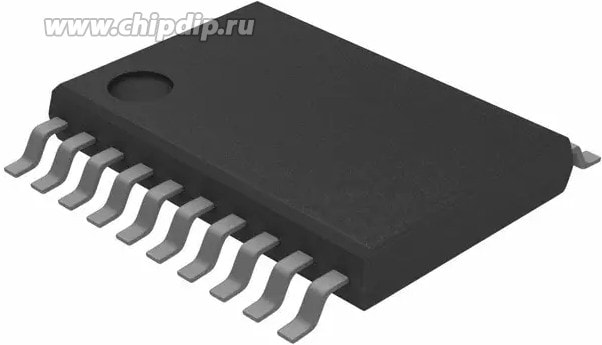

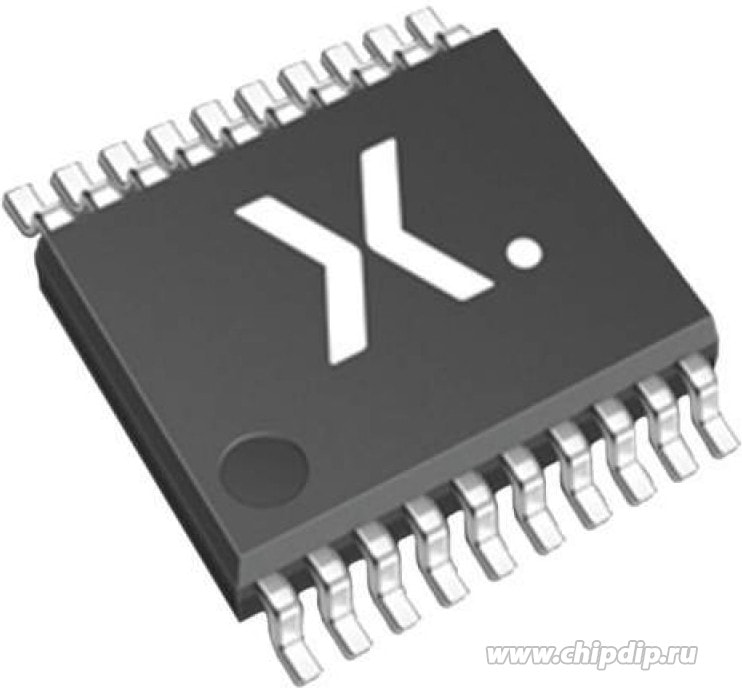

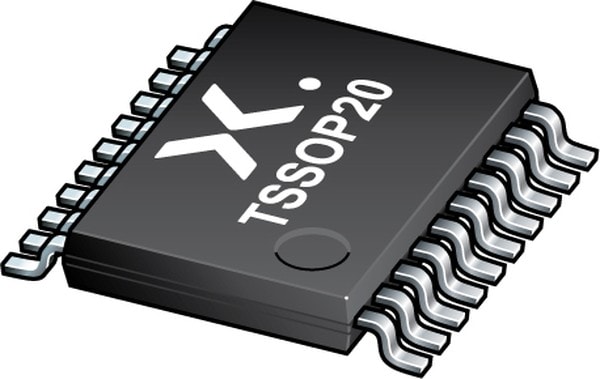

8005953474 74LVC573APW,118, D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-TSSOP Hirschmann
82,00 ₽
Описание
Прозрачная защелка D-типа 1 канал 8: 8 IC Tri-State 20-TSSOP
| Fan Type | Tubeaxial |
| Mounting | Surface Mount |
| Series | 74LVC-> |
| Packaging | Tape and Reel |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Tape & Reel(TR)Cut Tape(CT)Digi-ReelВ® |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 33W |
| Type | D-Type |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -40В°C ~ 125В°C |
| Size / Dimension | Round-254mm Dia |
| Termination | 2 Terminals |
| Width | 4.5mm |
| Static Pressure | 0.39 in H2O(97.1 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 140mA |
| Air Flow — CFM | 547CFM |
| External Depth | 89mm |
| Fan Frame Size | 254mm |
| Fan Frame Type | Circular |
| Noise Rating | 55dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | Terminals |
| Product Range | OA254 Series |
| Rated Speed | 1650rpm |
| Automotive | No |
| Part Status | Active |
| PPAP | No |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Voltage Range | 160 ~ 260VAC |
| Output Type | Tri-State |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP(0.173″», 4.40mm Width) |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Absolute Propagation Delay Time (ns) | 20.2 |
| Bus Hold | No |
| Latch Mode | Transparent |
| Logic Family | LVC |
| Maximum High Level Output Current (mA) | -24 |
| Maximum Low Level Output Current (mA) | 24 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 4.1(Typ)2.7V|3.4(Typ)3V to 3.6V |
| Maximum Quiescent Current (uA) | 40 |
| Minimum Operating Supply Voltage (V) | 1.2 |
| Number of Channels per Chip | 8 |
| Number of Elements per Chip | 1 |
| Number of Input Enables per Element | 1 |
| Number of Inputs per Chip | 8 |
| Number of Output Enables per Element | 1 |
| Number of Outputs per Chip | 8 |
| Number of Selection Inputs per Element | 0 |
| PCB changed | 20 |
| Pin Count | 20 |
| Polarity | Non-Inverting |
| Process Technology | CMOS |
| Propagation Delay Test Condition (pF) | 50 |
| Set/Reset | No |
| Supplier Package | TSSOP |
| Tolerant I/Os (V) | 5 |
| Typical Operating Supply Voltage (V) | 1.8|2.5|3.3 |
| Typical Quiescent Current (uA) | 0.1 |
| Latching Element | D Type |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 1.2 V |
| Number of Bits | 8bit |
| Package Type | TSSOP |
| Base Product Number | 74LVC573-> |
| Circuit | 8:8 |
| Current — Output High, Low | 24mA, 24mA |
| Delay Time — Propagation | 1.5ns |
| Independent Circuits | 1 |
| Logic Type | D-Type Transparent Latch |
| Supplier Device Package | 20-TSSOP |
| Voltage — Supply | 1.2V ~ 3.6V |
| Корпус | TSSOP20 |
Детали
| Бренд | Nexperia B.V. |
|---|
