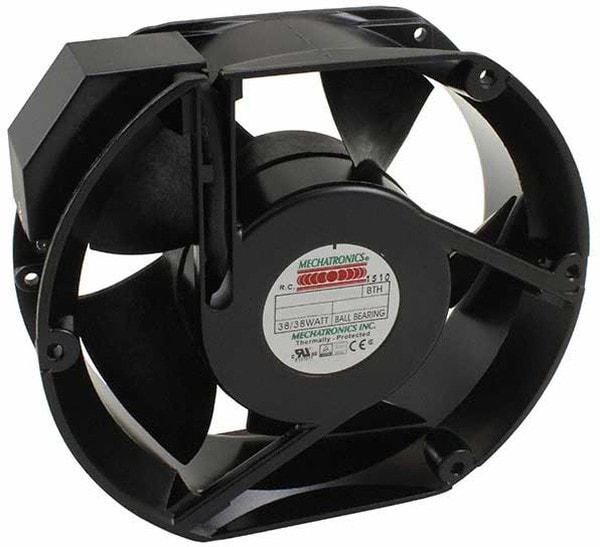

8005954509 UF15KC23-BTHR, Fan Tubeaxial 230VAC Rectangular/Rounded — 172mm L x 150mm H Ball 293.0 CFM (8.20m³/min) 3 Terminals Hirschmann
12350,00 ₽
Описание
Fan Tubeaxial 230VAC Rectangular/Rounded — 172mm L x 150mm H Ball 293.0 CFM (8.20mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 38 |
| Fan Type | Tubeaxial |
| Series | UF15KC-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Permanent Split Capacitor Motor, Thermal Overload |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -40 ~ 158В°F(-40 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 2 Terminals |
| Weight | 2.3 lbs(1 kg) |
| Width | 55.00mm |
| Current Rating (Amps) | 0.170A |
| Static Pressure | 0.9 in H2O(224.2 Pa) |
| Частота вращения,об./мин. | 3400 |
| Производительность,м.куб./мин. | 293 |
| Шум, дБA | 60 |
Детали
| Бренд | Mechatronics |
|---|
