Orion Fans

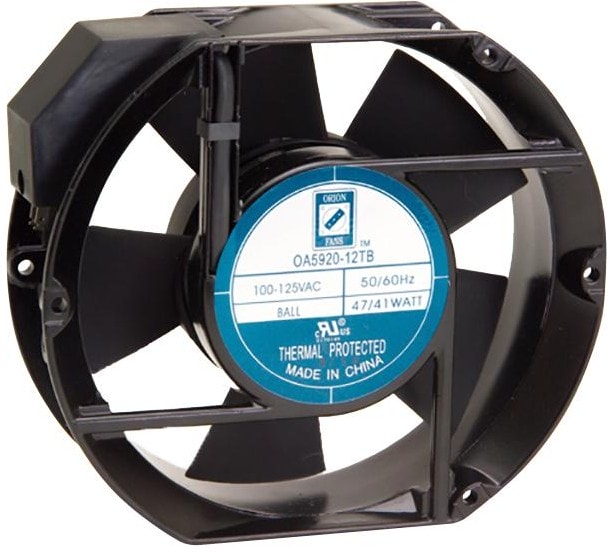

8005955011 OA5920-12TB, Fan Tubeaxial 120VAC Rectangular/Rounded — 172mm L x 150mm H Ball 180.0 CFM (5.04m³/min) 2 Terminals Hirschmann
8220,00 ₽
Описание
AC Fan Ball Bearing 120V 41W 50Hz/60Hz 3000RPM 180CFM 55dB Flange Mount
| Mounting | Flange Mount |
| Noise Level | 55 dB |
| Special Features | None |
| Тип подшипника | ball bearing |
| Рабочее напряжение,В | 120 |
| Толщина,мм | 51 |
| Product Category | AC Fan |
| ECCN | EAR99 |
| Power Rating | 41 W |
| Operating Temperature | -10 to 70 °C |
| Termination | Terminals |
| Category | AC Fan |
| COO | TW |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 180 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 120 V |
| Единица измерения | шт |
| Ток,А | 540 |
| Частота вращения,об./мин. | 3075 |
| Шум, дБA | 55 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| Линейка продукции | OA5920 Challenger Series |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.42inH2O|0.38inH2O |
| Minimum Operating Temperature (°C) | -40 |
| Shape | Rectangular/Round |
| Класс Мощности | 28Вт |
| Поток воздуха — куб.фут/мин | 195фут³/мин |
| Тип корпуса вентилятора | Rectangular with Rounded Ends |
| Тип Подключения Питания | Terminals |
| Size (Metric) (mm) | 172 X 150 X 51 |
| Voltage Rating (V) | 115 |
| Power Rating (W) | 32|28 |
| Nominal Speed (r/min) | 2725|3075 |
| Maximum Airflow (CFM) | 170|195 |
| Noise Level (dB) | 50.4|55.2 |
| Bearings | Ball |
| Line Current (A) | 0.43|0.37 |
| Operating Input Voltage Range (V) | 105 to 125 |
Детали
| Бренд | Orion Fans |
|---|
