Orion Fans

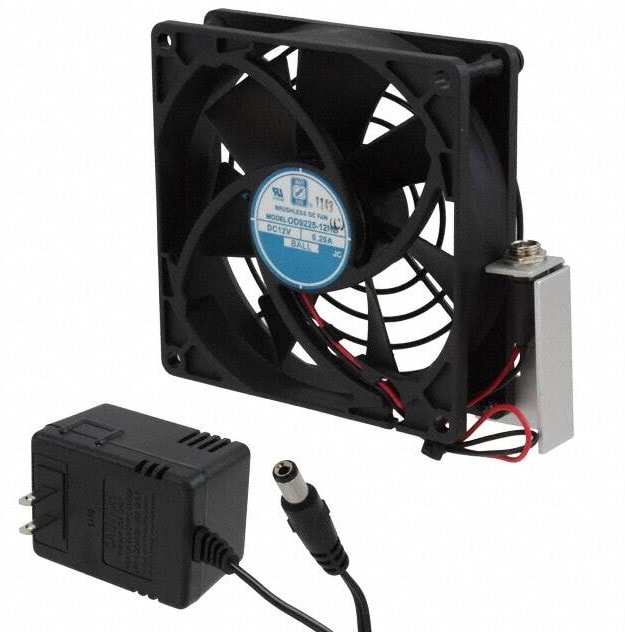

8005966729 OD9225-SPOT, Fan Tubeaxial 120VAC Square — 92.5mm L x 92.5mm H Ball 50.0 CFM (1.40m³/min) Cord and Plug Hirschmann
7680,00 ₽
Описание
Fan Tubeaxial 120VAC Square — 92mm L x 92mm H Ball 50.0 CFM (1.40mВі/min) Cord and Plug
| Потребляемая мощность, Вт | 3 |
| Fan Type | Tubeaxial |
| Series | OD9225-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 120 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Kit |
| Approval Agency | cURus, TUV |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -4 ~ 149В°F(-20 ~ 65В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | Cord and Plug |
| Width | 25.00mm |
| Current Rating (Amps) | 0.25A(AC) |
| Static Pressure | 0.24 in H2O(59.8 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 50 |
| Шум, дБA | 35 |
Детали
| Бренд | Orion Fans |
|---|
