EBM-PAPST

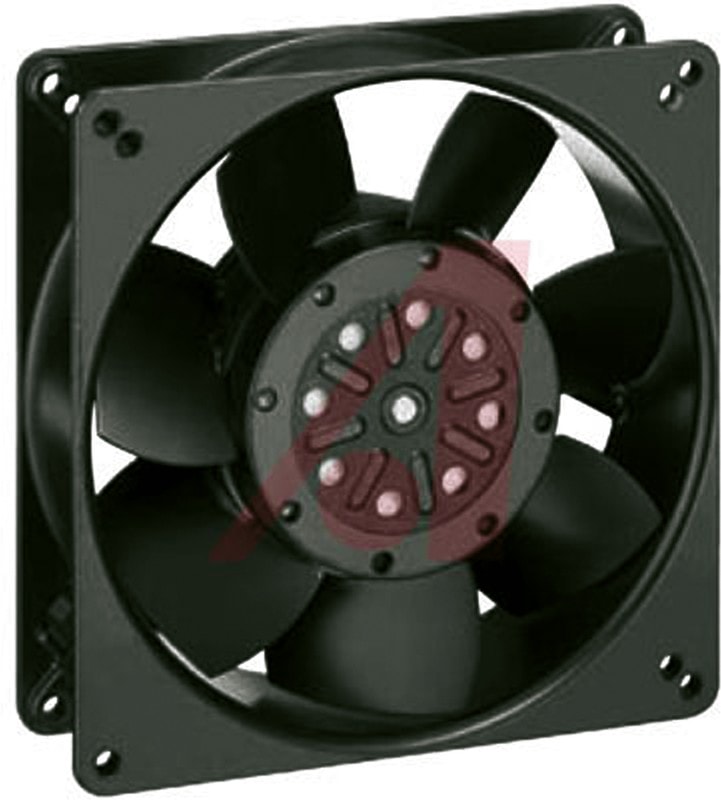

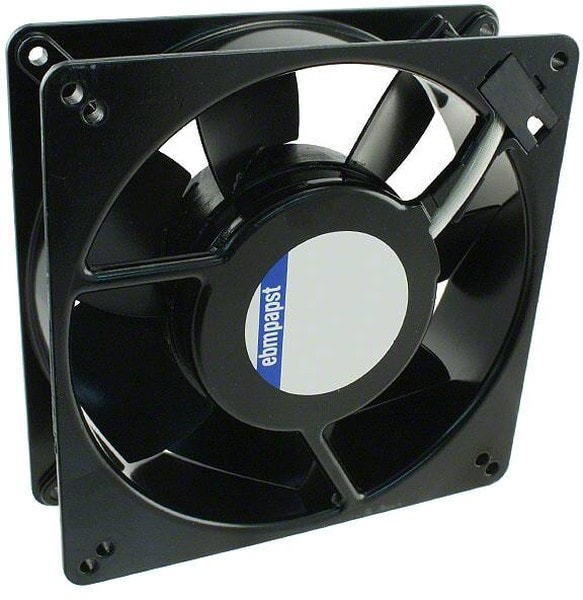

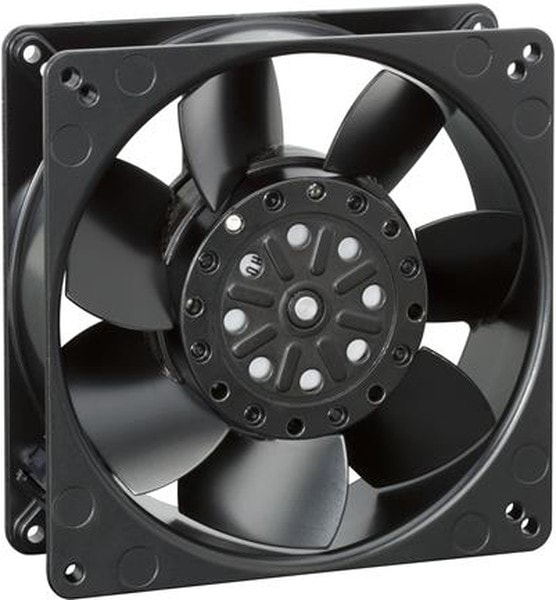

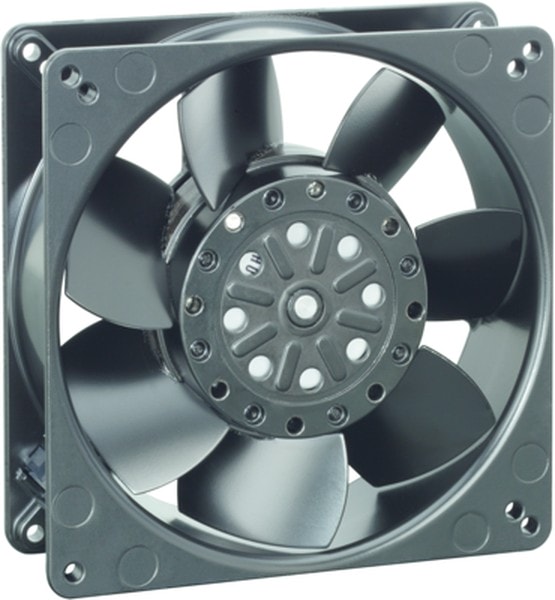

8005991980 5606S, Fan Tubeaxial 115VAC Square — 135mm L x 135mm H Ball 159.0 CFM (4.45m³/min) 2 Terminals Hirschmann
23570,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 135mm L x 135mm H Ball 159.0 CFM (4.45mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 26 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Series | 5600 |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| Brand | ebm-papst |
| Manufacturer | ebm-papst |
| Product Category | AC Fan |
| Product Type | AC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Airflow | 159 CFM(4.5 m3/min) |
| Current Type | AC |
| Depth | 38 mm |
| Factory Pack Quantity: Factory Pack Quantity | 1 |
| IP Rating | IP20 |
| Noise | 50 dBA |
| Operating Supply Voltage | 115 VAC |
| Power Rating | 26 W |
| Termination Style | Wire Leads |
| Type | Axial |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 47500 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Metal |
| Operating Temperature | -31 ~ 176В°F(-35 ~ 80В°C) |
| Size / Dimension | Square-135mm L x 135mm H |
| Termination | 2 Terminals |
| Weight | 1.8 lbs(816.5 g) |
| Width | 38.00mm |
| Housing Material | Aluminum |
| Power consumption | 26 W |
| Rated voltage | 115 V |
| Sound pressure level | 50 db |
| speed | 3100 1/min |
| Type of bearing | ball bearing |
| Version | AC axial fan |
| Volume flow | 270 m³/h |
| Bearing Type | Ball |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 159 |
| Шум, дБA | 50 |
| AC or DC Operation | AC |
| Direction of Curve | Backward |
| Sensor Type | Voltage Output |
| Automotive | Unknown |
| Part Status | Active |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 80 |
| Minimum Operating Temperature (°C) | -35 |
| Protection | Thermal |
| Shape | Square |
| Size (mm) | 135 X 135 X 38 |
Детали
| Бренд | EBM-PAPST |
|---|
