EBM-PAPST

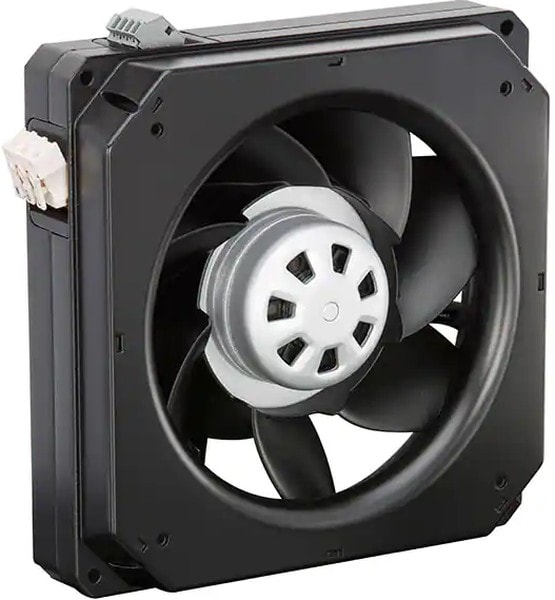

8006049309 K3G200-AD21-01, Fan Tubeaxial 230VAC Square — 245.5mm L x 245.5mm H Ball 547.0 CFM (15.32m³/min) Terminal Block Hirschmann
69950,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 245.5mm L x 245.5mm H Ball 547.0 CFM (15.32mВі/min) Terminal Block
| Потребляемая мощность, Вт | 80 |
| Fan Type | Tubeaxial |
| Series | K3G200-AD-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Features | Speed Sensor(Tach) |
| Approval Agency | UL |
| Material — Blade | Polyamide(PA), Nylon |
| Material — Frame | Polypropylene(PP) |
| Operating Temperature | -13 ~ 140В°F(-25 ~ 60В°C) |
| Size / Dimension | Square-245.5mm L x 245.5mm H |
| Termination | Terminal Block |
| Weight | 4.4 lbs(2 kg) |
| Width | 90.00mm |
| Current Rating (Amps) | 0.700A |
| Ingress Protection | IP54-Dust Protected, Water Resistant |
| Static Pressure | 0.88 in H2O(219.2 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 547 |
| Voltage Range | 200 ~ 240VAC |
Детали
| Бренд | EBM-PAPST |
|---|
