Sunon

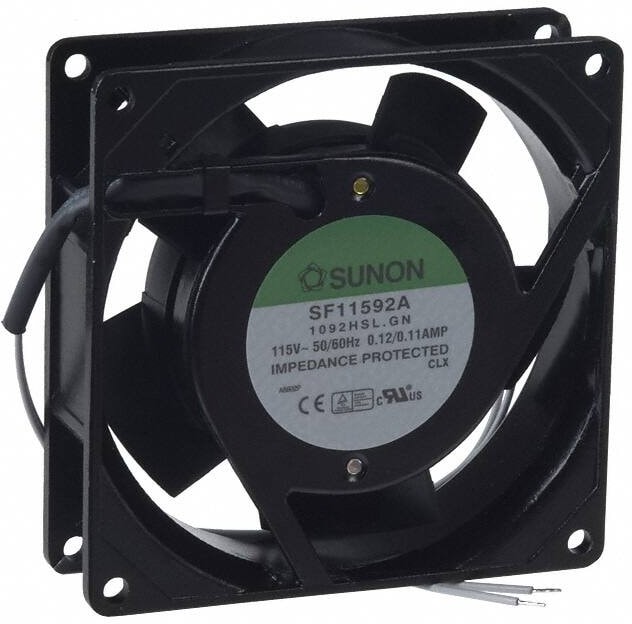

8006057329 SF11592A-1092HSL.GN, Fan Tubeaxial 115VAC Square — 91.5mm L x 91.5mm H Sleeve 36.0 CFM (1.01m³/min) 2 Wire Leads Hirschmann
5110,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 91.5mm L x 91.5mm H Sleeve 36.0 CFM (1.01mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 12 |
| Fan Type | Tubeaxial |
| Series | SF-> |
| Тип подшипника | Sleeve |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, CUR, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-91.5mm L x 91.5mm H |
| Termination | 2 Wire Leads |
| Weight | 0.617 lb(280.00 g) |
| Width | 25.50mm |
| COO | PH |
| RoHS | Yes |
| Supplier Standard Pack | 30 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.110A |
| Static Pressure | 0.18 in H2O(44.8 Pa) |
| Частота вращения,об./мин. | 2750 |
| Производительность,м.куб./мин. | 36 |
| Шум, дБA | 39 |
| Voltage Range | 85 ~ 125VAC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
