Orion Fans

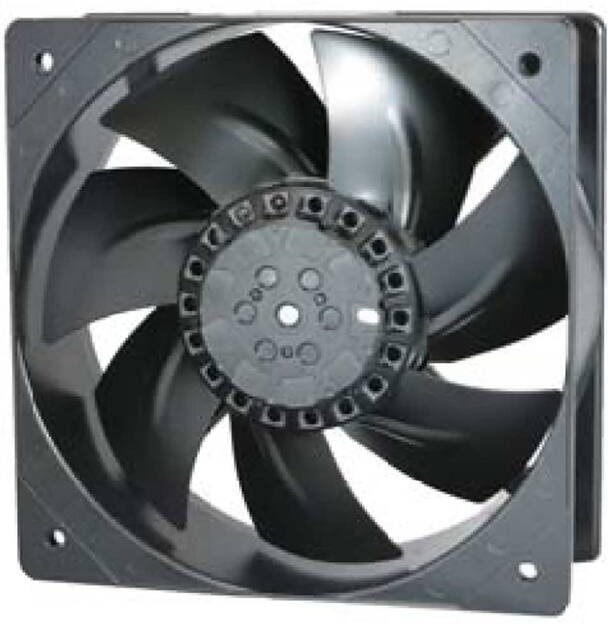

8006058962 OA205AP-22-1TB1868, FAN 230AC 205X205X72MM IP68 TERM Hirschmann
35110,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 205mm L x 205mm H Ball 590.0 CFM (16.52mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 80 |
| Fan Type | Tubeaxial |
| Series | OA205AP-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Thermal Overload Protector(TOP) |
| IP Rating | IP68 |
| Power Rating | 80W |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Steel |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Square-205mm L x 205mm H |
| Termination | 2 Terminals |
| Weight | 5.2 lbs(2.4 kg) |
| Width | 72.00mm |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.86 in H2O(214.2 Pa) |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 590CFM |
| External Depth | 72mm |
| Fan Frame Size | 205mm |
| Fan Frame Type | Square |
| Noise Rating | 67dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | Terminals |
| Product Range | OA205AP-IP68 Series |
| Rated Speed | 3000rpm |
| Частота вращения,об./мин. | 3000 |
| Производительность,м.куб./мин. | 590 |
| Шум, дБA | 67 |
Детали
| Бренд | Orion Fans |
|---|
