Qualtek Electronics

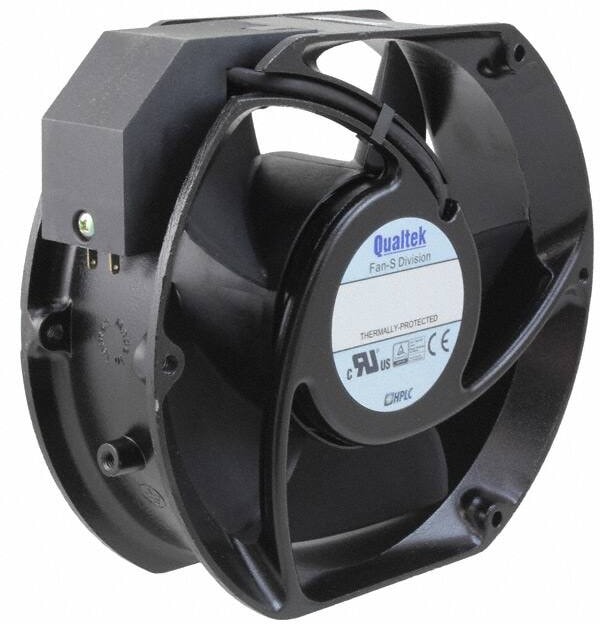

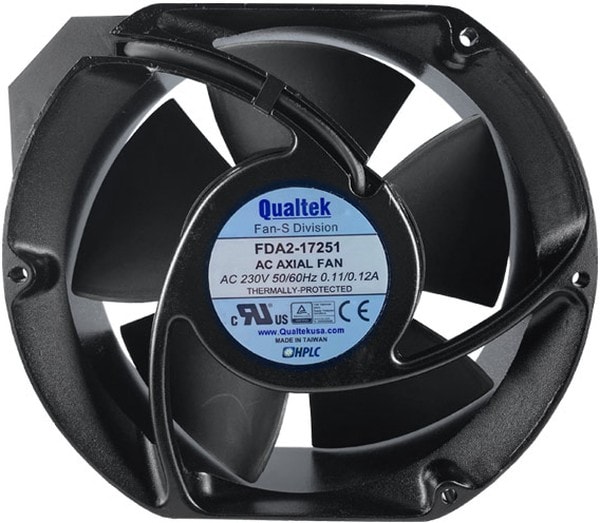

8006089317 FDA2-17251NBKT3F, Fan Tubeaxial 115VAC Rectangular/Rounded — 172mm L x 151mm H Ball 275.0 CFM (7.70m³/min) 2 Terminals Hirschmann
12300,00 ₽
Описание
Fan Tubeaxial 115VAC Rectangular/Rounded — 172mm L x 151mm H Ball 275.0 CFM (7.70mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 27 |
| Fan Type | Tubeaxial |
| Noise Level | 54.6 dB |
| Series | HPLC, FDA2-17251-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 24.27 W |
| Approval Agency | CE, cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 25В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Rectangular/Rounded-172mm L x 151mm H |
| Termination | 2 Terminals |
| Weight | 1.9 lbs(861.8 g) |
| Width | 51.00mm |
| Category | AC Fan |
| Housing Material | Aluminum Alloy |
| Maximum Airflow | 230.275 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 100 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.240A |
| Static Pressure | 0.768 in H2O(191.3 Pa) |
| Частота вращения,об./мин. | 3300 |
| Производительность,м.куб./мин. | 275 |
| Шум, дБA | 60 |
| Environmental Information | http://www.qualtekusa.com/PDFs/RoHS_Declaration.pd |
| California Prop 65 | Warning Information |
Детали
| Бренд | Qualtek Electronics |
|---|
