Delta Electonics

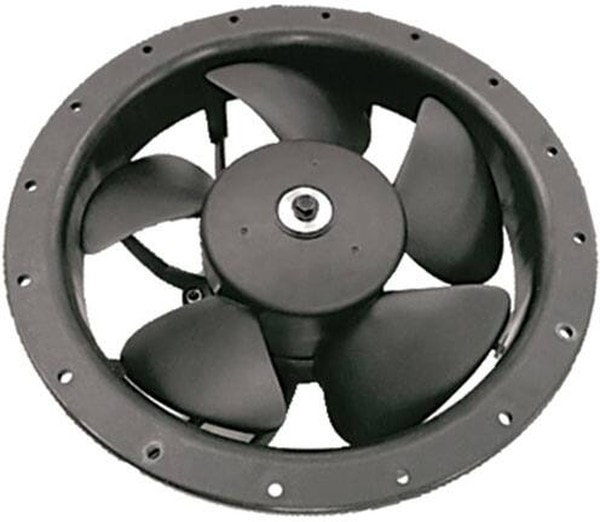

8006093387 AFL22AUHW-P1, Fan Tubeaxial 115/230VAC Round — 222mm Dia Ball 323.9 CFM (9.07m³/min) 3 Wire Leads Hirschmann
14610,00 ₽
Описание
Fan Tubeaxial 115/230VAC Round — 222mm Dia Ball 323.9 CFM (9.07mВі/min) 3 Wire Leads
| Потребляемая мощность, Вт | 8 |
| Fan Type | Tubeaxial |
| Series | AFL, EST-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Dual Speed, Dual Voltage, Electronic Commutation( |
| Approval Agency | cURus |
| Material — Blade | Plastic |
| Material — Frame | Plastic |
| Operating Temperature | -40 ~ 131В°F(-40 ~ 55В°C) |
| Size / Dimension | Round-222mm Dia |
| Termination | 3 Wire Leads |
| Width | 85.70mm |
| Ingress Protection | IP56-Dust Protected, Water Resistant |
| Static Pressure | 0.63 in H2O(156.9 Pa) |
| Частота вращения,об./мин. | 1800 |
| Производительность,м.куб./мин. | 323.9 |
| Шум, дБA | 57 |
| Voltage Range | 100 ~ 240VAC |
| Environmental Information | http://www.delta-fan.com/Download/Compliance/RoHS. |
Детали
| Бренд | Delta Electonics |
|---|
