Qualtek Electronics

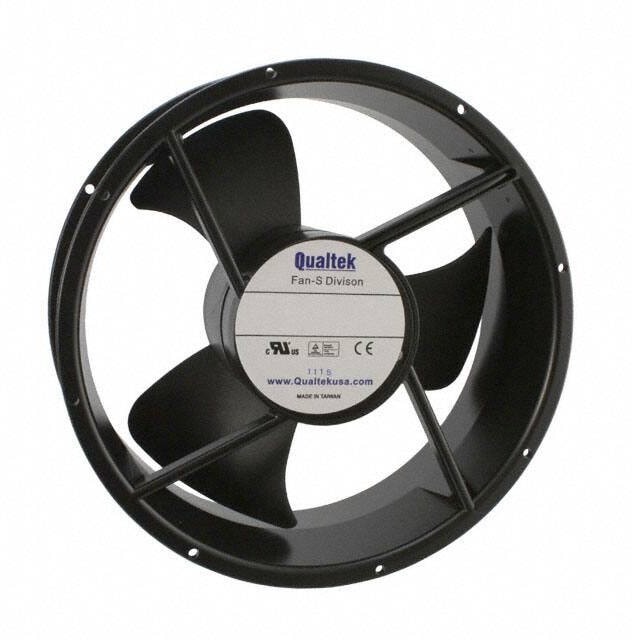

8006109825 FKA2-25489NBHT3F, Fan Tubeaxial 115VAC Round — 254mm Dia Ball 630.0 CFM (17.64m³/min) 2 Terminals Hirschmann
19830,00 ₽
Описание
Fan Tubeaxial 115VAC Round — 254mm Dia Ball 630.0 CFM (17.64mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 67.8 |
| Fan Type | Tubeaxial |
| Series | FKA2-25489-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, cURus, TUV |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Round-254mm Dia |
| Termination | 2 Terminals |
| Weight | 4.4 lbs(2 kg) |
| Width | 89.00mm |
| Current Rating (Amps) | 0.620A |
| Static Pressure | 0.276 in H2O(68.7 Pa) |
| Частота вращения,об./мин. | 2000 |
| Производительность,м.куб./мин. | 630 |
| Шум, дБA | 62 |
| Environmental Information | http://www.qualtekusa.com/PDFs/RoHS_Declaration.pd |
| California Prop 65 | Warning Information |
Детали
| Бренд | Qualtek Electronics |
|---|
