Orion Fans

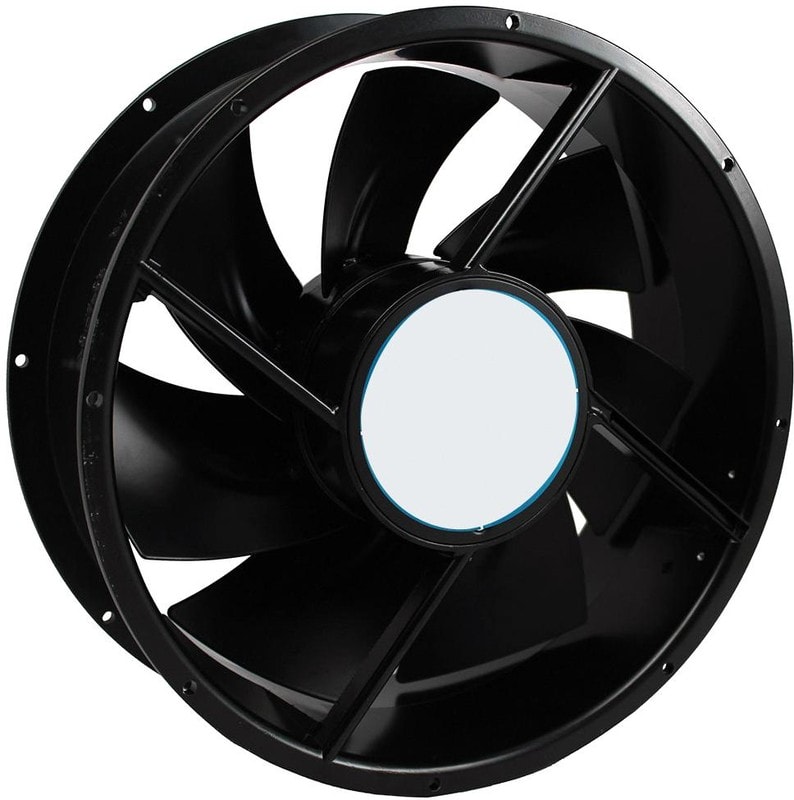

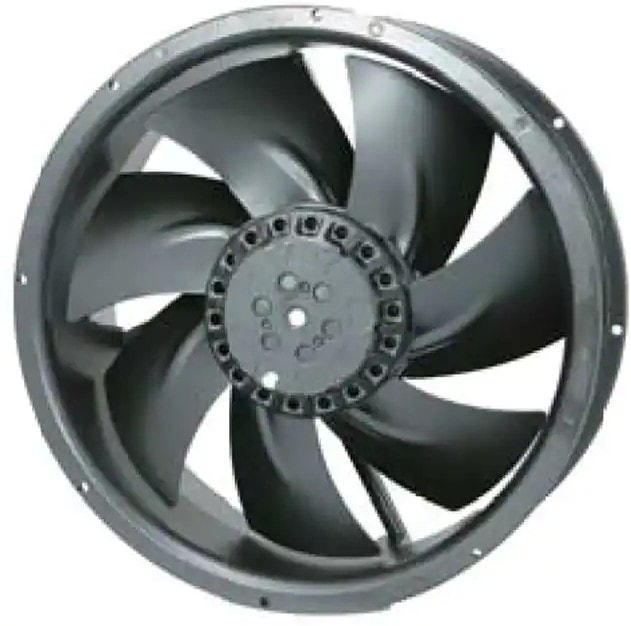

8006135501 OA2547AP-22-1WB1868, Fan Tubeaxial 230VAC Round — 254mm Dia Ball 1000.0 CFM (28.00m³/min) 2 Wire Leads Hirschmann
30400,00 ₽
Описание
Fan Tubeaxial 230VAC Round — 254mm Dia Ball 1000.0 CFM (28.00mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 105 |
| Fan Type | Tubeaxial |
| Series | OA2547AP-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Thermal Overload Protector(TOP) |
| IP Rating | IP68 |
| Power Rating | 105W |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Steel |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Round-254mm Dia |
| Termination | 2 Wire Leads |
| Weight | 5.7 lbs(2.6 kg) |
| Width | 89.00mm |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.6 in H2O(149.5 Pa) |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 1000CFM |
| External Depth | 89mm |
| Fan Frame Size | 254mm |
| Fan Frame Type | Circular |
| Noise Rating | 70dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | 2 Lead Wires |
| Product Range | OA2547AP-IP68 Series |
| Rated Speed | 3250rpm |
| Частота вращения,об./мин. | 3250 |
| Производительность,м.куб./мин. | 1000 |
| Шум, дБA | 70 |
Детали
| Бренд | Orion Fans |
|---|
