EBM-PAPST

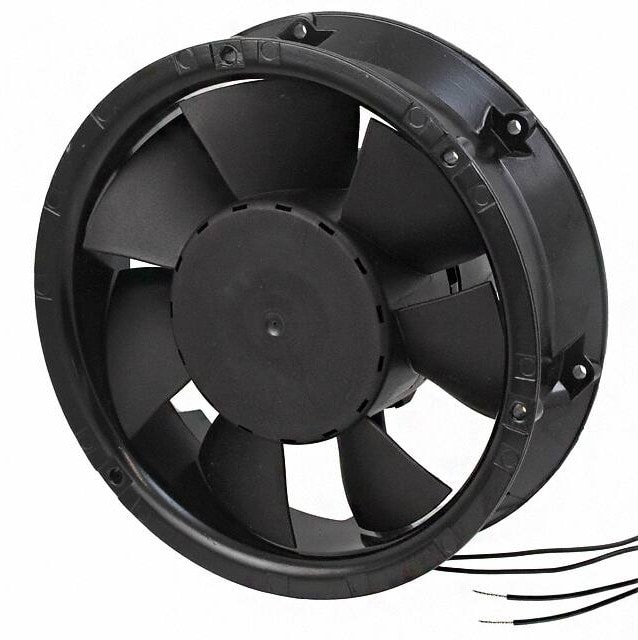

8006141405 AC6200NMU, Fan Tubeaxial 115/230VAC Round — 171.5mm Dia Ball 206.0 CFM (5.77m³/min) 2 Wire Leads Hirschmann
41010,00 ₽
Описание
Fan Tubeaxial 115/230VAC Round — 171.5mm Dia Ball 206.0 CFM (5.77mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 14 |
| Fan Type | Tubeaxial |
| Noise Level | 50 dB |
| Series | 6200NU-> |
| Special Features | N/A |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| Features | Dual Voltage, Electronic Commutation(EC) |
| Power Rating | 14 W |
| Approval Agency | CCC, CE, CSA, TUV, UL |
| Material — Blade | Polyamide(PA), Nylon, Fiberglass Reinforced |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Round-171.5mm Dia |
| Termination | 2 Wire Leads |
| Weight | 2 lbs(907.2 g) |
| Width | 50.80mm |
| Category | AC Fan |
| Housing Material | Aluminum |
| Maximum Airflow | 206 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115.23 V |
| Единица измерения | шт |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Частота вращения,об./мин. | 2850 |
| Производительность,м.куб./мин. | 206 |
| Шум, дБA | 50 |
| Voltage Range | 85 ~ 265VAC |
Детали
| Бренд | EBM-PAPST |
|---|
