Orion Fans

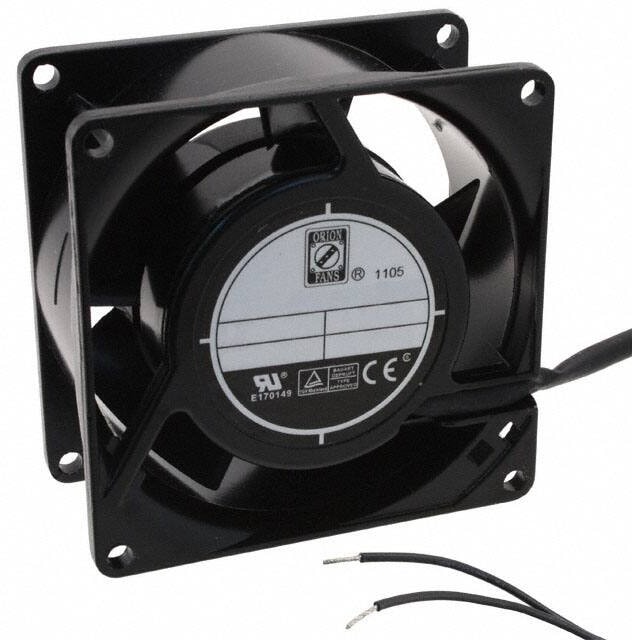

8006153827 OA80AP-22-2WB, Fan Tubeaxial 230VAC Square — 80mm L x 80mm H Ball 25.0 CFM (0.700m³/min) 2 Wire Leads Hirschmann
5070,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 80mm L x 80mm H Ball 25.0 CFM (0.700mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 12 |
| Fan Type | Tubeaxial |
| Series | OA80-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 12W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Width | 38.00mm |
| Current Rating (Amps) | 0.050A |
| Static Pressure | 0.16 in H2O(39.8 Pa) |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 25CFM |
| External Depth | 38mm |
| Fan Frame Size | 80mm |
| Fan Frame Type | Square |
| Noise Rating | 32dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | 2 Lead Wires |
| Product Range | OA80AP Series |
| Rated Speed | 2400rpm |
| Частота вращения,об./мин. | 2400 |
| Производительность,м.куб./мин. | 25 |
| Шум, дБA | 32 |
| Video File | Harsh Environment Fans |
| Voltage Range | 160 ~ 260VAC |
Детали
| Бренд | Orion Fans |
|---|
