Orion Fans

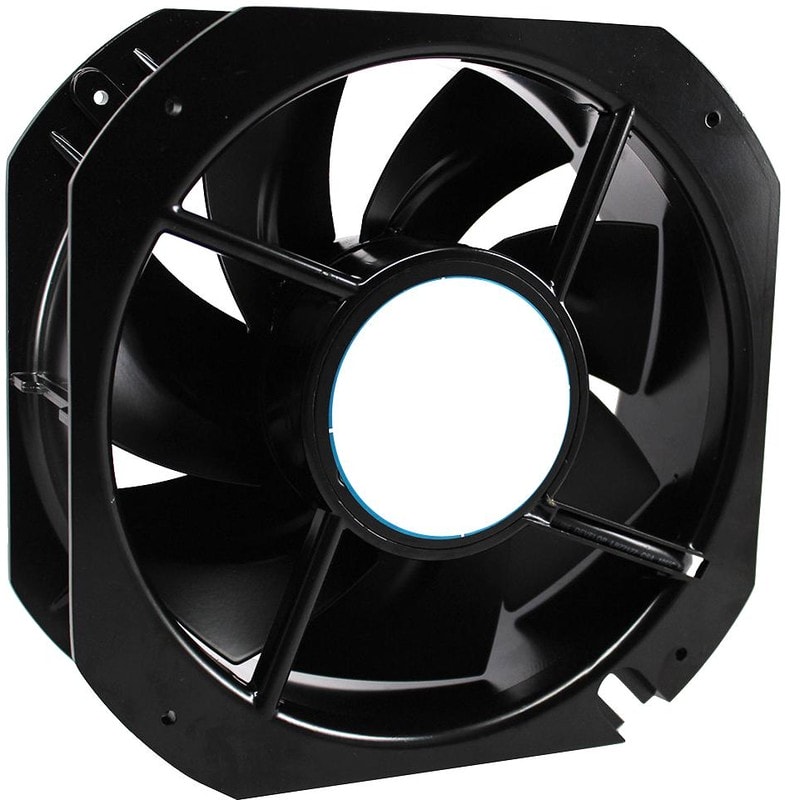

8006167528 OA225AP-22-1WB1868, Fan Tubeaxial 230VAC Square — 225mm L x 225mm H Ball 620.0 CFM (17.36m³/min) 2 Wire Leads Hirschmann
20940,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 225mm L x 225mm H Ball 620.0 CFM (17.36mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 80 |
| Fan Type | Tubeaxial |
| Series | OA225AP-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Thermal Overload Protector(TOP) |
| IP Rating | IP68 |
| Power Rating | 80W |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 45000 Hrs @ 55В°C |
| Material — Blade | Steel |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Square-225mm L x 225mm H |
| Termination | 2 Wire Leads |
| Weight | 5 lbs(2.3 kg) |
| Width | 80.00mm |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.74 in H2O(184.3 Pa) |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 620CFM |
| External Depth | 80mm |
| Fan Frame Size | 225mm |
| Fan Frame Type | Square |
| Noise Rating | 66dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | 2 Lead Wires |
| Product Range | OA225AP-IP68 Series |
| Rated Speed | 3100rpm |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 620 |
| Шум, дБA | 66 |
Детали
| Бренд | Orion Fans |
|---|
