Comair Rotron

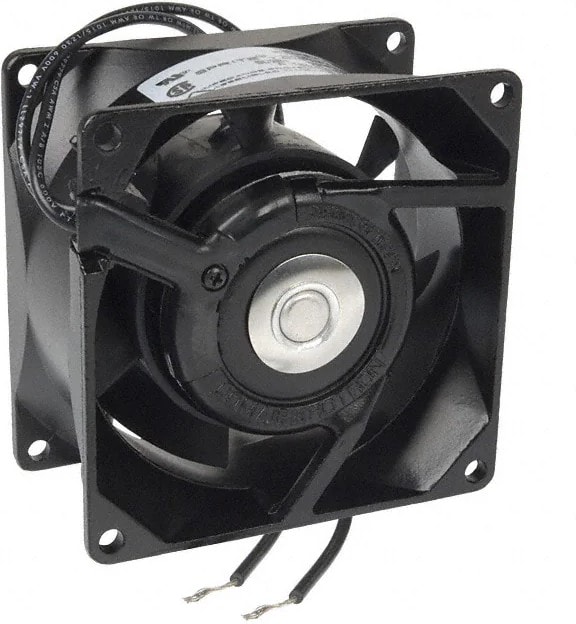

8006179903 19028268A, Fan Tubeaxial 115VAC Square — 80mm L x 80mm H Ball 31.0 CFM (0.868m³/min) 2 Wire Leads Hirschmann
10510,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 80mm L x 80mm H Ball 31.0 CFM (0.868mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 13 |
| Fan Type | Tubeaxial |
| Series | Sprite AC-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp. | 62000 Hrs @ 70В°C |
| Material — Blade | Magnesium Alloy |
| Material — Frame | Magnesium Alloy |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.573 lb(260.00 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.130A |
| Ingress Protection | IP44 |
| Static Pressure | 0.17 in H2O(42.3 Pa) |
| Частота вращения,об./мин. | 2800 |
| Производительность,м.куб./мин. | 31 |
| Шум, дБA | 32 |
| Voltage Range | 99 ~ 121VAC |
Детали
| Бренд | Comair Rotron |
|---|
